Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | China |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-S1212 |
Minimum Order Quantity: | 1 set |
Price: | USD20000-42000/set |
Packaging Details: | packaged according to the requirements of customers |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C, Paypal |
Supply Ability: | 20 sets per month |
Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Oversea |
---|---|---|---|
Color: | As Your Request | Max.Foam Block: | 2500×1200×1000mm |

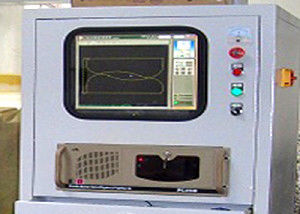

Control System: | Industrial Computer With D&T Special Profiler Software | Cutting Line: | 3 X 0.6mm |
Cutting Speed: | 0~6m/min | Precision: | ±0.5mm |
Power: | 4kw 380V 50HZ | Weight: | 1200kg |
Highlight: | foam contour cutting machine,latex cutting machine,Vertical Wire Oscillating Blade Cutter |

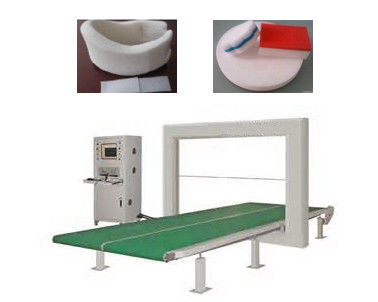

4KW Vertical Wire Type DTC-S1212 CNC Automatic Oscillating Blade Cutter Machine High Speed Vibrating
Application:
Polyurethane, PU soft foam, sticky foam, latex, basotect, composite foam, frame foam, polyethylene.
Advantage:
* PC/ Industry computer control, easy operation.
* Worktable:plat working table, moving table (could select)
Specification:
Model |
DTC-S1212 |
Control System |
Industrial Computer |
Max. Product Size |
2500×1200×1000mm |
Cutting Speed |
0~6m/min |
Cutting Line |
3 X 0.6mm |
Precision |
±0.5mm |
Power |
4kw 380V 50HZ |
Weight |
1200kg |
Description:
The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter
which is suitable flexible foam.
The blade cut with high speed vibrating, so that it will work faster and the product
will be smoother.
Specially no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.
All the machines are driven by the remarkable D&T Profiler software, which speeds
up the design process and enables the operator to obtain the best yield from the foam block.
Software question:
1. Q: what kind of CAD software the machine uses?
A: For the CAD software ,our machine uses 2004 or 2006(you prefer )
2. Q: about the CAD software, what's its name?
A: The name is Auto CAD Software
3. Q: where do you sell your machines mostly? which countries?
A:our main market is Russian, Middle East, Canada,USA,Austral,Mexico,Brazil for different kind types
4. Q: the operating system which you use is windows, right?
what kind of windows? XP? or Windows 7?
A:Yes ,it is Windows XP.
When operated,Our machine doesn't need to use network
We usually use XP for its stability.Also windows 7 is OK.
5. Q:is your software licensed or it's illegal? ("cracked")
A: our own profiler cutting software is develop by ourselves. It is origina
Q:but the auto-cad and the windows? the auto-cad and the windows are original too
I am asking this question because our company use only licensed software
A:windows is licensed; AutoCAD is testing type.
our machines do not include the licensed AutoCAD
if you have any drawing software, you can make the DXF file.
6. Q:the differences between our Fast Wire CNC Cutting machine and Oscillating
Blade CNC Blade cutting Machine.
A:First,Fast wire cutters use high -speed abrasive wire and Oscillating Blade cutters
use high-speed toothed blade.
Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.and for soft foam material,
the better cutter is Oscillating Blade CNC cutter.
Thirdly,fast wire CNC cutters also can cut soft material.but the dust from the soft material
needs an extra dust pelletizing system and the soft material also is not good for the fast wire
cutter itself.
7. Q:For reputation and website:
A: for the reputation ,we are 8 years golden supplier on Alibaba.
And our engineers have researched our machine more and improved it better and better. We
promise our machine will be as good as we told. Even we keep 10% for the guarantee until to
install the machine well and the client satisfy with our machine.
Why choose D&T:
Since 2006, being the leading manufacturing CNC automatic foam cutting machine in China,
D&T offers the highest price performance foam cutting machine.
Every D&T product was marked as economic, environmental and easy maintenance.
With 9 years history in the industry, D&T built a high reputation in South America,
Eastern Europe, Southeast Asia, and Oceania regions.
The D&T Industry Co., Ltd. won the customers for our good service and advanced technology.
Welcome to D&T!
Cutting finish product:
