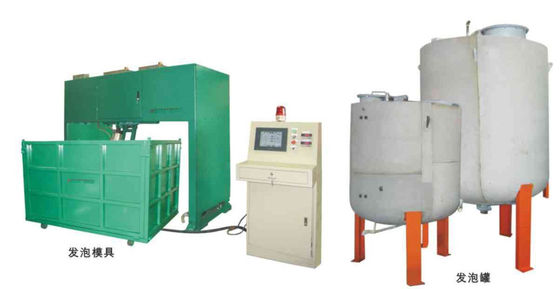

Automatic Foam Box Making Production Line For Mattress , 7.5kw 60Kg / m³
1)Mould
Quantity: 2sets
Size: W2100*L2450*H1200mm
2). Main Technology Data:
Max.Product Size: 2400mm×2000mm (L×W)
Max. Product Height: 1200mm
Quantity of component of foaming material: 7 (PPG, TDI, MC, Water, Silicone oil, T9,A33)
Density: 10Kg/m³~60Kg/m³
Maximum capacity: 150L/mould, discontinual Foaming(two moulds), 6~10 blocks per hour
Touch scream and semi-automatic control system with 100 foaming formula
Power of Mixing Head: 7.5kw(Brake motor)
Total Power: 30KW
3). Configuration
3.1 Components (total 7 components)
|
No. |
Component |
Material Tank |
Out-feed Pump |
specification |
|
1 |
PPG |
3 Ton,A3 Steel |
CB-7 |
Feeding Pump, Mixing device, Constant Temperature Coil, Material Tank Thermometer, Liquidometer |
|
2 |
TDI |
2 Ton,A3 Steel |
NB2-C32F |
Feeding Pump, Mixing device, Constant Temperature Coil, Material Tank Thermometer, Liquidometer |
|
3 |
MC |
500L 2mm Stainless Steel |
NB2-D10F |
Feeding Pump, Liquidometer |
|
4 |
T9
|
50L 1mm Stainless Steel |
HGP-2A-F2R
|
|
|
5 |
Silicone Oil |
50L 1mm Stainless Steel |
HGP-2A-F2R
|
|
|
6 |
A33
|
50L 1mm Stainless Steel |
HGP-2A-F2R
|
|
|
7 |
Water |
50L 1mm Stainless Steel |
HGP-2A-F4R
|
|
Terms of Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T before delivery
Installation and Start-up:
2 technicians will be assigned to coordinate installation, commissioning and
training, cost for flight and suitable accommodation plus USD60/day will be charged additionally.
Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.
Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
