Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | China |
---|---|
Brand Name: | D&T |
Model Number: | DTPUF-75 |
Minimum Order Quantity: | 1set |
Price: | usd35000~56000 set |
Packaging Details: | packed with pvc film into 1*40HQ |
Delivery Time: | 45days |
Payment Terms: | T/T, L/C, Paypal |
Supply Ability: | 10 sets per month |
Item: | Batch Box Foaming Machine | Product Size: | 3000*2000mm |
---|---|---|---|
Product Height: | Below 1100mm | Chemical: | PPG, TDI, MC, Silicone+H2O, T9, A33, Etc. |
Density: | 10Kg/m³~60Kg/m³ | Maximum Capacity: | 220L/mould |
Production Capacity: | 230kg/h | Total Power: | 35KW |
Foaming Model: | Semi-automatic | Application Area: | Sponge, Polyurethane Foam, Mattress, Furniture |
Highlight: | Sponge making machine,foam making machine,Semi Auto Sponge Production Line |

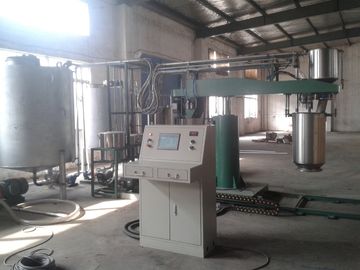

Semi-auto Mattress Sponge Production Line For Medium Scales Plant , 35KW

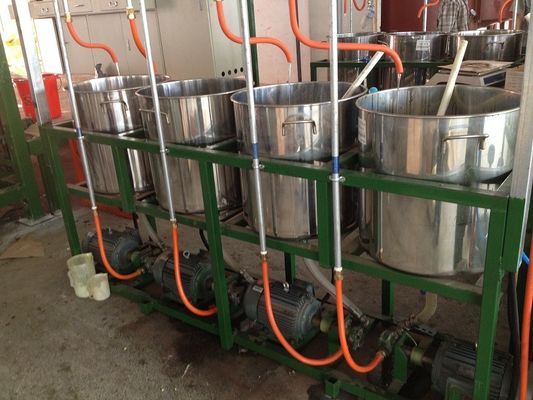

3.1 Components (total 7 components)
No. |
Component |
Material Tank |
Out-feed Pump |
specification |
1 |
PPG |
3 Ton, A3 Steel |
CB-7 |
Feeding Pump, Mixing device, Constant Temperature Coil, Material Tank Thermometer, Liquidometer |
2 |
TDI |
2 Ton, A3 Steel |
NB2-C32F |
Feeding Pump, Mixing device, Constant Temperature Coil, Material Tank Thermometer, Liquidometer |
3 |
MC |
500L 2mm Stainless Steel |
NB2-D10F |
Feeding Pump, Liquidometer |
4 |
T9
|
50L 1mm Stainless Steel |
HGP-2A-F2R
|
|
5 |
Silicone Oil |
50L 1mm Stainless Steel |
HGP-2A-F2R
|
|
6 |
A33
|
50L 1mm Stainless Steel |
HGP-2A-F2R
|
|
7 |
Water |
50L 1mm Stainless Steel |
HGP-2A-F4R
|
|
2). Main Technology Data:
Max.Product Size: 2400mm×2000mm (L×W)
Max. Product Height: 1200mm
Quantity of component of foaming material: 7 (PPG, TDI, MC, Water, Silicone oil, T9,A33)
Density: 10Kg/m³~60Kg/m³
Maximum capacity: 150L/mould, discontinual Foaming(two moulds), 6~10 blocks per hour
Touch scream and semi-automatic control system with 100 foaming formula
Power of Mixing Head: 7.5kw(Brake motor)
Total Power: 30KW
3.2 Mould
Quantity: 2sets
Size: W2100*L2450*H1200mm
Terms of Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T before delivery
Installation and Start-up:
2 technicians will be assigned to coordinate installation, commissioning and training,
cost for flight and suitable accommodation plus USD80/day will be charged additionally.
Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.
Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
