15KW Manual Polyurethane Foam Mattress Sponge Foam Making Machine
Manual Sponge Production Line ( Small Factory Plant)
Type: F-1#
Product Size: W1050~2050mm(adjustable)
L2250~3050mm (adjustable)
H 1200mm
2.1 Carbon Steel Material Tank
Volume: 3Tons
Size: Φ1500mm×H1700mm/δ4.0
Mixed System: Speed 30~40 r/min
With temperature meter and pump, outside be insulated.
2.2 Stainless Steel Material Tank
Volume: 2Tons
Size: Φ1300mm×H1500mm/δ3.0
Mixed System: Speed 30~40 r/min
With temperature meter and pump, outside be insulated.
3. Horizontal Cutter
This cutter is a kind of Automatic Control machine, and has the Frequency conversion system.
It is used to cut sponge sheet.
|
TECHNICAL DATA
|
|
|
Type
|
DTPQ-1650
|
|
Max. Product Size
|
2000×1650×1200(mm)
|
|
Cutting Line
|
8500 mm
|
|
Control System
|
Transducer
|
|
Cutting Speed
|
0~25m/min
|
|
Overall Power
|
8.14kW
|
|
Overall Dimension
|
5800×3500×2400 mm
|
|
Overall Weight
|
2000kg
|
| |
|
4. Vertical Cutter
|
TECHNICAL DATA
|
|
Type
|
DTLQ-4L
|
|
Inner Table Size
|
1720×2290(mm)
|
|
Outer Table Size
|
2000×2290(mm)
|
|
Cutting Height
|
800/1200(mm)
|
|
Cutting Thickness
|
>3mm
|
|
Cutting Line
|
8100/8900(mm)
|
|
Overall Power
|
1.74kW
|
|
Overall Dimension
|
4500×4800×2550 mm
(L×W×H)
|
|
Overall Weight
|
1600kg
|

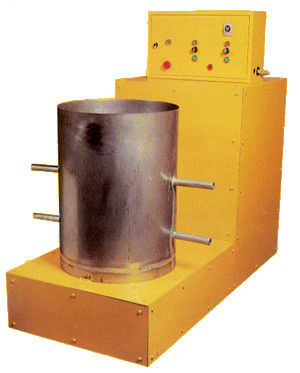

Manual foaming machine
Type: DTBF-11A
1). Motor 11kW with Transducer
2). Capacity: 150kg
3). Mixing Speed: 0-2800r/min
Terms of Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T before delivery or sight confirmed L/C.
Installation and Start-up: 2 technicians will be assigned to coordinate installation,
commissioning and training, cost for flight and suitable accommodation plus USD80/day will be charged additionally.
Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.
Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
