Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | CN |
---|---|
Brand Name: | D&T |
Certification: | CE certificate |
Model Number: | DTC-F2012 |
Minimum Order Quantity: | 1 set |
Price: | USD15000-50000/SET |
Packaging Details: | packed with pvc film |
Delivery Time: | 20days |
Payment Terms: | T/T, L/C, Paypal |
Supply Ability: | 20 Sets Per Month |
Item: | CNC Foam Contour Cutting Machine For Rigid Foam | Type: | DTC-F2012 |
---|---|---|---|
Product Size: | 3000*1200*1200mm | Cutting Line Diameter: | 1.0-1.5mm |
Control System: | Industrial Computer | Cutting Speed: | 0-6m/min(adjusted) |
Precision: | ±1mm | Power: | <6.5kw |
Weight: | 1200kgs | Overall Dimension: | 6200*2400*2380mm |
Name: | FOAM CUTTING MACHINE | Color: | Customized |
High Light: | foam cutting equipment,polyurethane cutting machine,Computerized Rigid PU Cutting Machine |

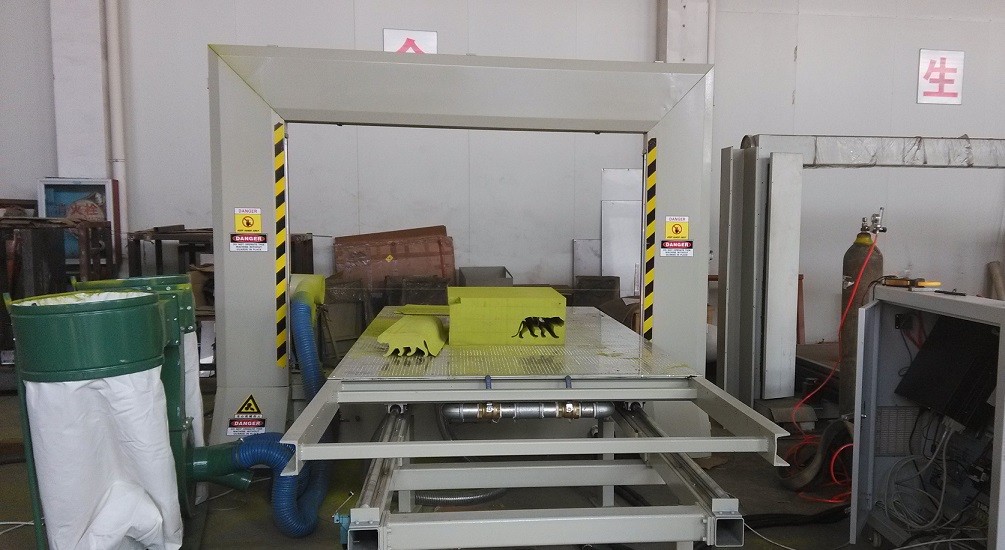

Digital CNC Computerized Rigid PU Cutting Machine With Wireless Remote Control
Specification:
1. It is advanced and fully automatic computerized foam contour cutting machine.
2. Can cut foam into any 2D complex shape.
3. Easy control
This foam cutting machine is most advanced and fully automatic computerized foam contour cutting machine, which can cut the various shape by computerized system.
1. This eva foam contour cutting machine is operated by computer and use CAD software to design the shape for the foam block. Make full use of the foam blocks and extremely save the raw material(foam blocks) cost.
2. Besides CAD software, we also design another drawing software by our engineers which is very easy to use. Operators only need to go through simple computer literacy training.
3. This CNC contour cutter is equipped with wireless remote control which makes the operation more humane convenient.
4. Equipped with high precision servo mechanism system; Rapid cutting speed and accurate cutting; which enhance the working efficiency.
5. 85% of dust will be collected to the bag during cutting process and low noise.
6. Operating system: Windows XP
7. Designing software: Auto CAD / Self-developed CNC operation Software.
8. Cutting software: Foam cutting control system
Features:
1) Big cost savings by eliminating the need to make, repair and store templates
2) Integrated design & cutting program. Just design then cut
3) Big cost savings by automatically arranging the product
4) Supports numeric instrument
5) Higher material utilization resulting from computer aided nesting of shapes
6) Cutting speed can be set to be the best-cut speed for different foams
7) Can pre-cut on the computer to check cutting course
8) Several ways to keep operator safe: four safety doors to stop all motors
when it is opened; braking system starts when cutting line is broken
Technical Data of 2D CNC Fast Wire Cutting Machine
TECHNICAL DATA | |||
Type | DTC-F1212 | DTC-F2012 | DTC-F2512 |
Max. Product Size | 2500*1200*1000(mm) | 2500*2000*1200(mm) | 2500*2500*1200(mm) |
Cutting Line | 1.3~1.5mm | 1.3~1.5mm | 1.3~1.5mm |
Control System | Industrial Computer | Industrial Computer | Industrial Computer |
Software | D&T Profiler | D&T Profiler | D&T Profiler |
Cutting Speed | 0~6m/min | 0~6m/min | 0~6m/min |
Precision | ±0.5mm | ±0.5mm | ±0.5mm |
Power | <5.5kw | <6.5kw | <8.5kw |
Vacuum De-dust | Included | Included | Included |
Overall Weight | 1200kg | 1500kg | 2200kg |
Overall Dimension | 4800*2400*2380mm | 4800*3200*2800mm | 4800*3800*2800mm |
After-sale Service:
1. Our engineers is avilable to oversea for coordinate installation, commissioning and training. Cost for flight and suitable accommodation plus USD 80 per day each person will be charged additionally.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted and test before delivery.
Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.
shipping cost for parts to be replaced during warranty period have to be borned by the customers.
Terms of Paypent: 30% advance payment by T/T upon signing the contract
70% covered by Confirmed Irrevocable Sight L/C
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,
polyurethane cutting machine, quilting machine and foam relation assistant
equipments.
Through the research of our engineers, our cutting machine had connected well with
the popularized CAD and achieved automation and high efficiency, high accuracy and makes it
easy to operate.We always put the customer on the first place and make utmost efforts to satisfy
you.We wholeheartedly look forward to developing economic, technical and trade cooperation
with you.
Products: Fast wire cutting machine, pu cutting machine, hot wire cutting machine, eps
cutting machine,quilting machine and so on.
Welcome visit us!please feel free to contact us for more information!
