Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | Zhejiang,China |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DT - 6C |
Minimum Order Quantity: | 1 set |
Price: | USD 5000 - 40000 / set |
Packaging Details: | Film + wooden box |
Delivery Time: | 40 working days |
Payment Terms: | T/T, L/C, Paypal |
Supply Ability: | 20 sets / month |
HS Code: | 84472030 | Tilting Angle Of The Sewing Head: | Be Adjusted Within 35 ° -55 ° |
---|---|---|---|
Travel Speed: | 50-300mm | Table Size: | 1400*1950mm ; 1550 Mm *2050 Mm ; 1800 Mm*1950 Mm |
Highlight: | tape edging machine,mattress stitching machine,50mm tape edge sewing machine |

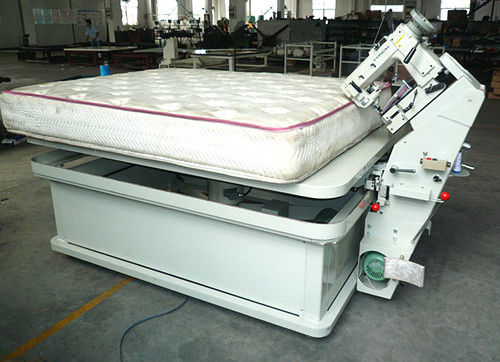

Automatic Mattress Tape Edge Sewing Machine For Sewing Simmons Mattresses 50mm
Main Feature:
1. Advanced chainstitch sewing head.
2. Auto-lifting table, hand-controlled tilting of sewing head.
3. Variable speed for moving of carriage and sewing, auto-slowdown at corners.
4. Straight, enen and attractive seam.
5. Stainless steel table top.
6. Equipped with level-adjusting device.
7. Low noise, small vibration, stable performance
Product Main Information:
The machine is mainly used for sewing Simmons mattresses,
mattress fabrics and wall coverings to complete the edges
between the package seam work,
but also applies to other mattresses,
sofas upholstered sewing, sleeping bag.
The aircraft is equipped with hanging rotary power supply,
so that the machine can do continuous sewing.
Within the range of sewing trajectory can be arbitrarily fixed work,
sewing speed and process can be controlled by a knee lever.
Technical data |
|
Tilting angle of the sewing head |
Be adjusted within 35 ° -55 ° |
Travel Speed |
5.5-7.5m/min(Pulley stepless adjustment) |
Mattress thickness |
50-300mm |
Table Size |
1400*1950mm ; 1550 mm *2050 mm ; 1800 mm*1950 mm |
Power |
0.75KW |
Terms:
Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T or Sight Confirmed Irrevocable L/C before delivery.
Delivery: 40 days after receipt of advance payment.
Installation and Start-up:
One technician will be assigned to coordinate installation,
commissioning and training,
cost for flight and suitable accommodation
plus USD80/day per person will be charged additionally.
Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.
Shipping cost for parts to be replaced
during warranty period have to be borne by the customer.
