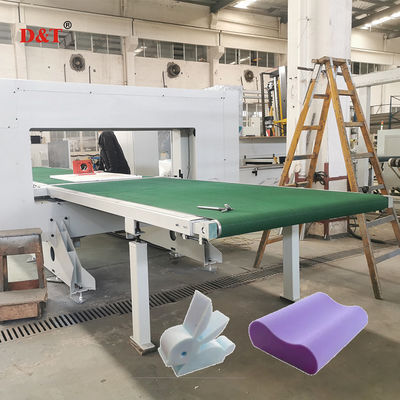

Precise PU Foam Cutting Machine For Rock Wool PIR EVA Vertical Cutter 5Wheel
Features:
Summary of the features of the 5-wheel wire knife vertical foam cutting machine:
1. Efficient cutting and complex shape processing capabilities
Multi-material adaptability: can cut elastic polyurethane, rigid/semi-rigid foam (such as polystyrene, polyethylene, polyvinyl chloride, etc.), and support fast cutting of complex two-dimensional shapes.

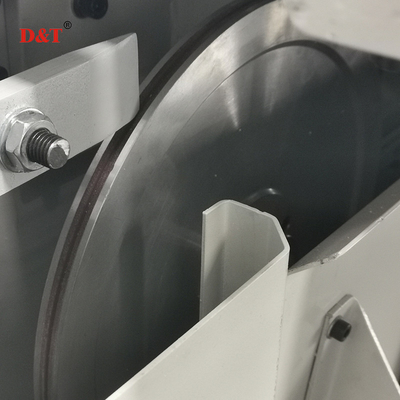

High-speed steel wire technology: using high-speed grinding steel wire as a cutting tool, combined with a multi-wheel transmission system (such as a 5-wheel design) to ensure stable tension during cutting.
2. Intelligent control system
Computer automatic programming.
High-precision motion control: using industrial computers and CNC systems, the cutting accuracy can reach ±0.5mm, the speed range is 0-6m/min, and it supports programming cutting of straight lines, arcs and any plane shapes.
Negative pressure adsorption workbench: fix the material through negative pressure to prevent foam displacement during cutting, combined with an adjustable positioning device.

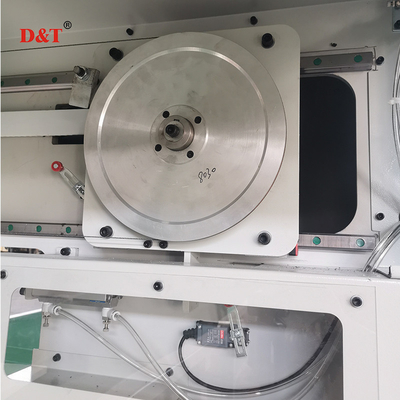

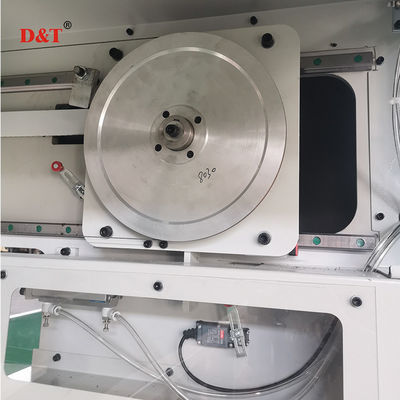

Multi-wheel transmission system: The 5-wheel wire knife design may optimize the steel wire tension distribution through multiple guide wheels, reduce cutting deformation, and extend the service life of the steel wire.
3. Safety and ease of operation
Multiple safety protection.
Optimization of human-computer interaction.
4. Energy saving and cost-effectiveness
High material utilization rate: computer-optimized material arrangement can reduce waste generation and raw material costs.
Products: Fast wire cutting machine,
pu cutting machine,
hot wire cutting machine,
eps cutting machine,
quilting machine and so on.
Sponge foaming machine
Application:
Flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams
Specification:
| Model |
DTC-F1212
|
|
Max. Product Size
|
2500×2500×1000(mm)
|
|
Cutting Line
|
1.0~1.5mm
|
|
Control System
|
Industrial Computer
|
|
Software
|
D&T Profiler
|
|
Cutting Speed
|
0~6m/min
|
|
Precision
|
±1mm
|
|
Power
|
<8.5kw
|
|
Overall Weight
|
2200kg
|
Packing:
For the packing,
there are a professional team to loading the cargo. and also,
we have some long-term cooperation with the shipping agent
who is rich experience of carrier. So do not worry,
it can save money and safe for you.
After-sale Service:
1. Our engineers is avilable to oversea for coordinate installation,
commissioning and training.
Cost for flight and suitable accommodation plus USD 60 per day
each person will be charged additionally.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted and test before delivery.
Company Information
Fuyang D&T Industry CO., LTD. Specializes in manufacturing
CNC foam Cutting machine, polyurethane cutting machine,
quilting machine and foam relation assistant equipments.
Through the research of our engineers,
our cutting machine had connected well with the popularized
CAD and achieved automation and high efficiency,
high accuracy and makes it easy to operate.
We always put the customer on the first place
and make utmost efforts to satisfy you.
We wholeheartedly look forward to developing economic,
technical and trade cooperation with you.
EVA finish product:
