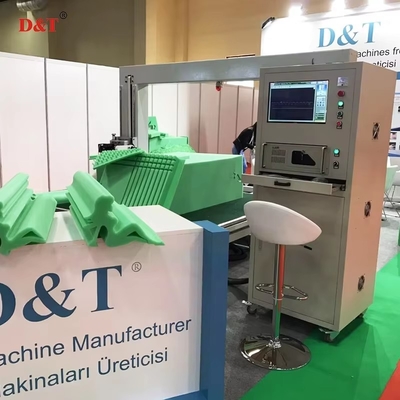

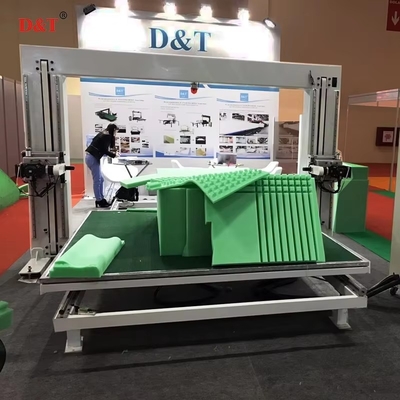

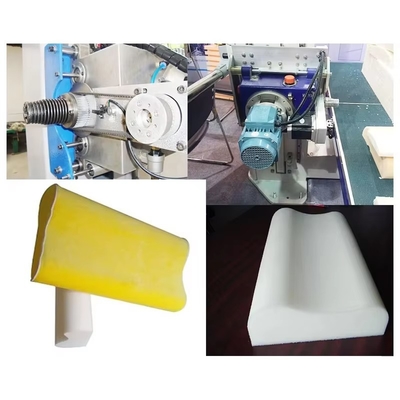

The CNC Oscillating Blade Foam Cutting Machine uses dual vibrating blades that move back and forth rapidly to slice foam smoothly.
The oscillating motion reduces tearing and ensures clean, precise cuts, even in complex shapes.
This technology is ideal for creating intricate designs in foam for furniture upholstery, cushions, and decorative elements.
Its CNC control allows for automation and accuracy, improving efficiency and product quality in the furniture industry while minimizing material waste and reducing manual labor.
2. Product Parameter
| Type |
|
DTC-SD2012 |
| Max. Product Size |
|
3000*2200*1250(mm) |
| Horizontal Cutting Blade |
|
2300*3*0.5mm |
| Vertical Cutting Blade |
|
2300*3*0.5mm |
| Control System |
|
Industrial Computer+Windows XP with D&T Profiler |
| Cutting Speed |
|
0~10m/min(adjustable) |
| Power |
|
10kw,380v,50hz |
| Blade Tension |
|
Cylinder Tensioning 6 Bar |
| Overall Weight |
|
2000kg |
| Overall Dimension |
|
5800*3180*2400mm |
·Main Features
1)High Precision and Repeatability
2)Capability for Complex 3D Geometries
3)Rapid Production (vs. Manual)
4)Minimal Material Waste
5)Smooth Finish with Minimal Post-Processing
As a professional sponge equipment manufacturer, we also produce various types of sponge cutting equipment to meet the production and processing needs of different industries.
Please feel free to contact us, our technical team will recommend the most suitable model for you and provide professional technical support and services!
3. Packing information
For the packing, there are a professional team to loading the cargo.
and also, we have some long-term cooperation with the shipping agent who is rich experience of carrier.
So do not worry, it can save money and safe for you.
·After-sale Service:
1) Our engineers is avilable to oversea for coordinate installation, commissioning and training. Cost for flight and suitable accommodation
plus USD 60 per day each person will be charged additionally.
2) Lifetime maintenance free of charge.
3) Free training course at our plant.
4) 24 hours on line service each day, free technical support.
5) Machine has been adjusted and test before delivery.
·Warranty:
12 months limited warranty starting from date of delivery excluding wear parts.
shipping cost for parts to be replaced during warranty period have to be borned by the customers.
·Terms of Papent:
30% advance payment by T/T upon signing the contract
70% covered by Confirmed Irrevocable Sight L/C
6. FAQ
1) Q:Are you a factory ?
A:Yes,We are a manufacturer and doing the foam machines since 2006.
2) Q: Which drawing software do you use?
A:Auto CAD.
3) Q: Whether your engineer can come to our factory for installation of the machine?
A: Yes, sure.
4) Q: Can you import DXF files from another source?
A:yes. Any DXF files is acceptable.
5) Q:The other fast wire machine had dust extraction and filtering. Does this machine also have dust extraction?
A : Yes, include it.
6) Q: What countries have you sold to?
A: Canada,Mexico,Brazil,Australia,Singapore,Malaysia,UAE,Yemen,Qatar,Algeria etc.
7) Q: What safety controls are on the machine?
A:There are urgence bottoms on the control box and machine for accident to stop the mahicne.There are two fence around the cutting frame, the machine will stop when you open the fence.
Company Information
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine, polyurethane cutting machine, 3D Panel Machine, Concrete Sprayer and foam relation assistant equipments. Through the research of our engineers, our cutting machine had connected well with
the popularized CAD and achieved automation and high efficiency, high accuracy and makes it easy to operate.We always put the customer on the first place and make utmost efforts to satisfy you.We wholeheartedly look forward to developing economic, technical and trade cooperation with you.
Products: Fast wire cutting machine, pu cutting machine, hot wire cutting machine, eps
cutting machine, 3D panel production line, concrete spray machine and so on.
