Rigid PU CNC Fast Wire Cut Machine Horizontal Foam Contour Cutting Machine DTC-F1212K
Product Specifications
| Attribute |
Value |
| Item |
Automatic fast wire foam cutter |
| Type |
DTC-F1212K |
| Product Size |
3000*1200*1200mm |
| Cutting Line Diameter |
1.0-1.5mm |
| Control System |
Industrial Computer |
| Precision |
±0.5mm |
| Weight |
1200kgs |
| Overall Dimension |
6200*2400*2380mm |
| Colour |
Customized |
Product Description

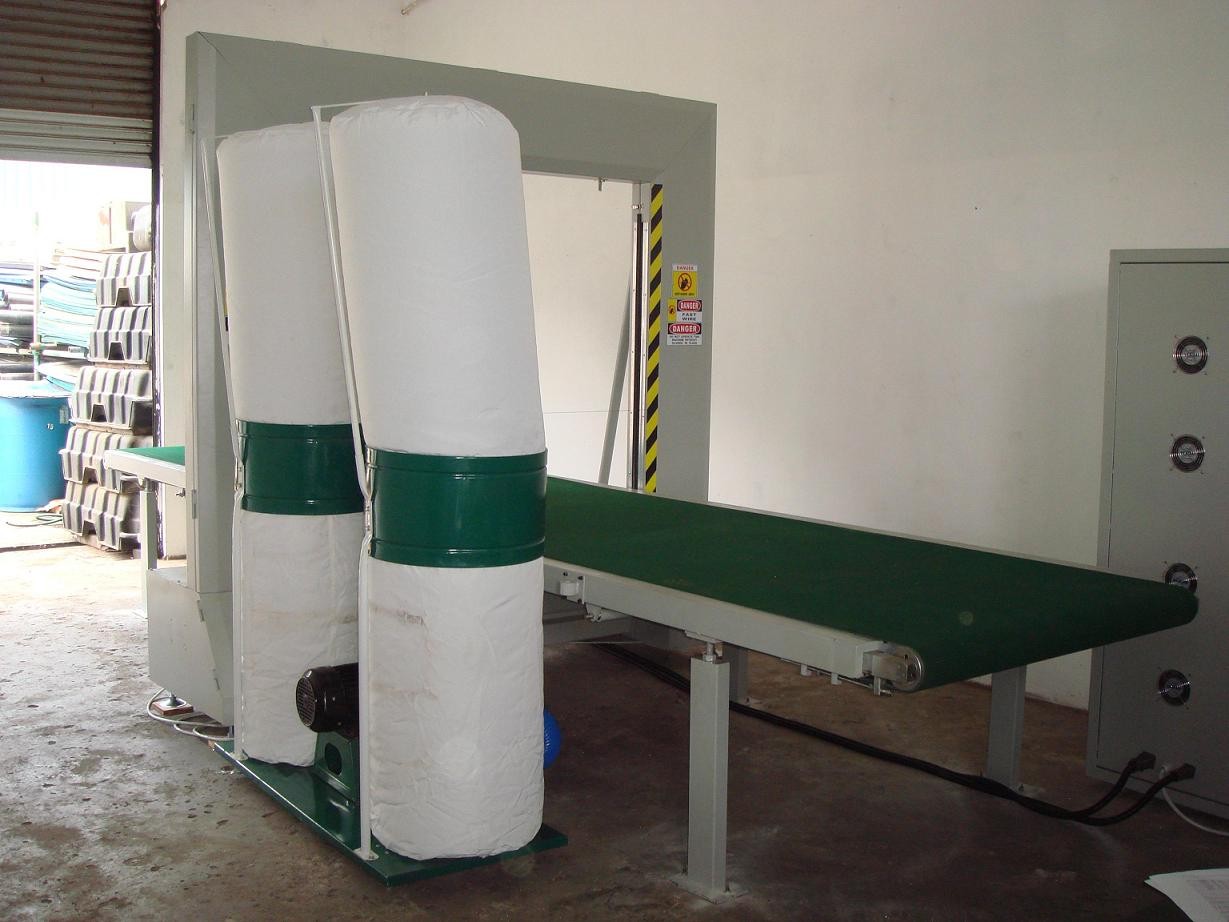

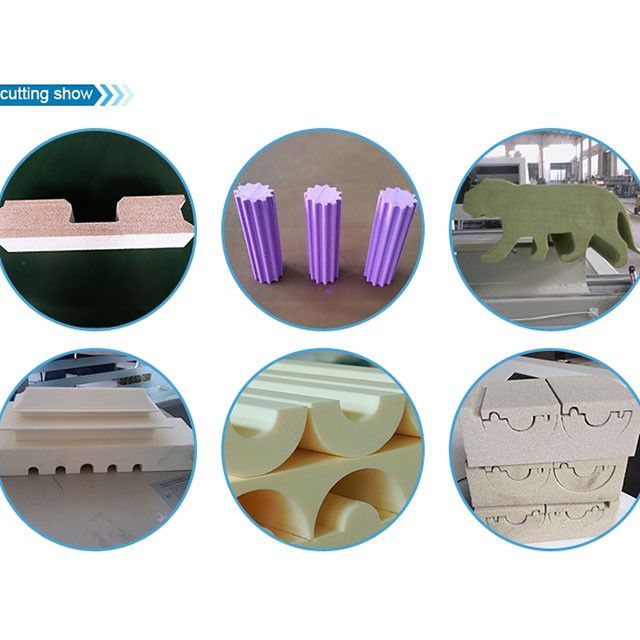

CNC Horizontal Fast Wire Rigid Foam Cutting Machine is ideal for cutting various materials including Rigid & Flexible Polyurethane (PU), Rock Wool (Mineral Wool), Phenolic Foams, EVA, PIR, PUR, Foam Glass Fireproofing Panels, EPS, PVC, and other rigid foam materials.

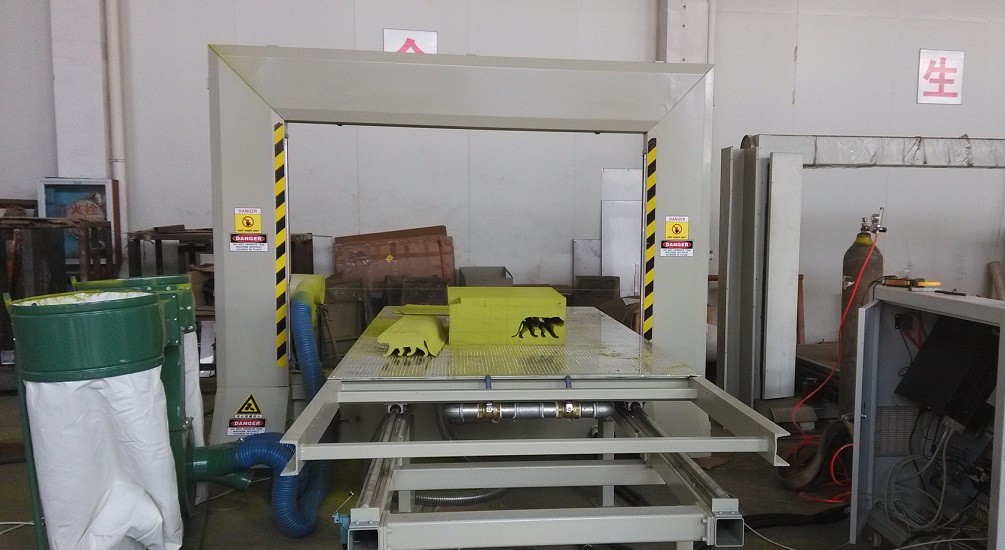

This precision machine uses a high-speed wire to slice foam horizontally with exceptional accuracy. The CNC system controls wire movement for straight, consistent cuts, making it perfect for large-scale production. Its rapid cutting speed enhances efficiency while maintaining clean edges, widely used in the insulation industry for producing foam boards and panels with consistent quality and minimal waste.
Technical Data
| Type |
DTC-F1212K |
DTC-F2012K |
| Max. Product Size |
2500*1200*1000(mm) |
2500*2000*1200(mm) |
| Cutting Line |
1.3~1.5mm |
1.3~1.5mm |
| Control System |
Industrial Computer |
Industrial Computer |
| Software |
D&T Profiler |
D&T Profiler |
| Cutting Speed |
0~10m/min |
0~10m/min |
| Precision |
±0.5mm |
±0.5mm |
| Power |
<5.5kw |
<6.5kw |
| Vacuum De-dust |
Included |
Included |
| Overall Weight |
1200kg |
1500kg |
| Overall Dimension |
4800*2400*2380mm |
4800*3200*2800mm |
Our Services
- Engineers available for international installation, commissioning, and training (additional charges apply for travel and accommodation)
- Free lifetime maintenance
- Complimentary factory training courses
- 24/7 online technical support
- All machines are fully tested and adjusted before shipping
Frequently Asked Questions
Q: Are you a factory?
A: Yes, we are a manufacturer and have been producing foam machines since 2006.
Q: What drawing software do you use?
A: Automatic CAD.
Q: Can your engineer come to our factory to install the machine?
A: Yes, of course.
Q: Can I import DXF files from other sources?
A: Yes. Any DXF file is acceptable.
Q: Does this machine have a vacuum function?
A: Yes, it is included.
Q: Which countries do you sell to?
A: Canada, Mexico, Brazil, Australia, Singapore, Malaysia, United Arab Emirates, Yemen, Qatar, Algeria, and more.
Q: What safety features does the machine have?
A: Emergency stop devices on the control box and machine, plus two safety fences around the cutting frame that automatically stop operation when opened.
Company Information
Fuyang Datong Industrial Co., Ltd. specializes in manufacturing CNC foam cutting machines, polyurethane cutting machines, 3D panel machines, concrete spraying machines, and related foam processing equipment. Our cutting machines feature CAD compatibility for automation, high efficiency, precision, and ease of operation.
Product range includes: fast wire cutting machines, PU cutting machines, hot wire cutting machines, EPS cutting machines, 3D panel production lines, and concrete spraying machines.
