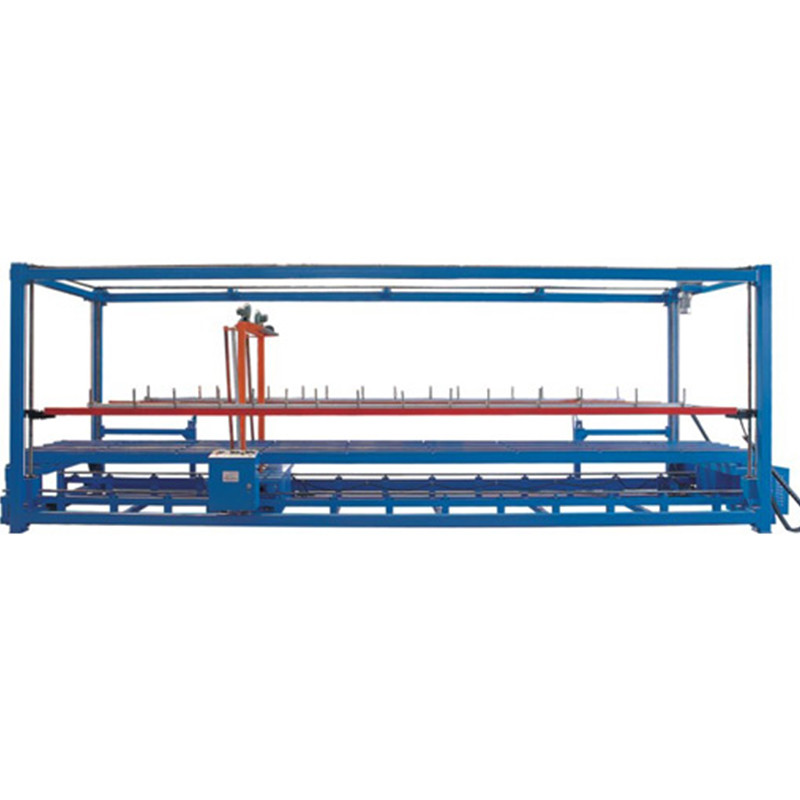

Polystyrene Sheets Cutting Machine From Cnc Machine Manufacturer Eps Sheet Machine

1 set
MOQ
USD 3500-9500 /PC
Price
Polystyrene Sheets Cutting Machine From Cnc Machine Manufacturer Eps Sheet Machine
Features Gallery Product Description Request A Quote
Features
Specifications
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product: Polystyrene
Max.Product Size: L2000*W1300*H1300 Mm
Total Power: 22.3kw
Overall Weight: 1300kg
Overall Dimension: Overall Dimension
Highlight:

Cnc Eps Sheet Machine

,

EPS Down Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: D&T
Model Number: DTC-EP200A
Payment & Shipping Terms
Packaging Details: WOODEN BOX
Delivery Time: 30 WORK DAYS
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 20 SETS PER MONTH
Product Description




[EPS Down Cutting Machine]



Polystyrene Sheets Cutting Machine From Cnc Machine Manufacturer Eps Sheet Machine 0



Features:



1. All the machines are driven by the remarkable D&T Profiler software:the software speeds up the

design process and enables the operator to obtain the best yield from the foam block.

2. It has perfect safe system to prevent the accident:all Motors will stop when the safety dooropened;

Exigency button on both machine and control box is for preventing accident.

3. The main frame is weided from profile steel with strong structure and high strength.

4. The machine has horizontal,cross and edge cutting devices.

5. It adopts transducer to get the suitable cutting speed for different types of EPS blocks with different

density.

6. Voltage adjustment coordinate the transducer can cut the sheet perfectly.

7. Special down cutting device was designed for wall insulation board,can increase the cutting speed and precision.



Tech Data

Type DTC-EP200A DTC-EP300A DTC-EP400A DTC-EP600A DTC-EP800A
Max. Product Size(mm)

2000*1300*

1300

3000*1300*

1300

4000*1300*

1300

6000*1300*

1300

8000*1300*1300
Power 22.3 kw 22.3 kw 22.3 kw 22.3 kw 22.3 kw
Overall Dimension(mm)

5100*2025*

2900

6100*2025*

2900

7100*2025*

2900

9100*2025*

2900

11100*2025*2900
Overall Weight(kg) 1300 1600 2000 2800 3200
