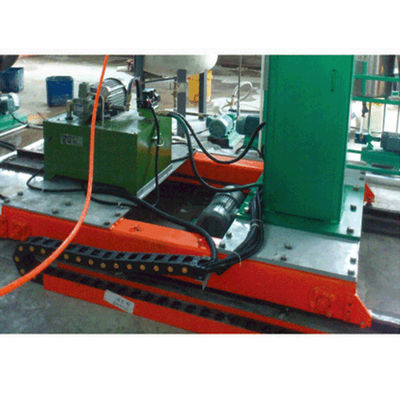

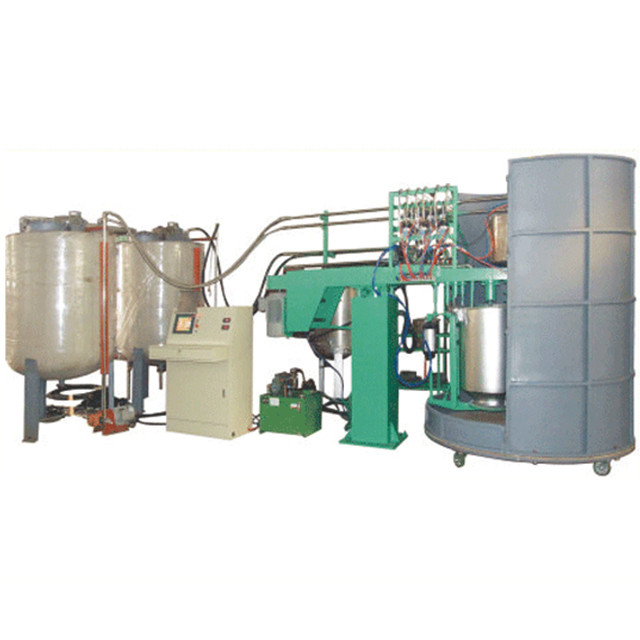

Semi Automatic Batch Foaming Machine , Polyurethane Sponge Mattress Foaming Machine

Polyurethane Sponge Production Line/ machine to foaming mattress/ Polyurethane foaming machine

Full Automatic continuous foaming machine to make Polurethane foam

Product Description

A. specifications of each component:

1.Stirs mix rack and spongy control platform 4m×3.2m×3.2m(L×W×H)

2. Drop board of drying tunnel 8.32m×1.2m~2.30m(L×W)

3.Side link joint of drying tunnel 17.5m×2.4m×1.2m(L×W×H)

4.Rack of drying oven 16.9m×4.55m×3.2m(L×W×H)

5. Level transportation line in the drying tunnel 17.5m×2.4m×0.8m(L×W×H)

6. The width of sponge wadding for cutting machine 2.4m×1.30m (W×H)

(Undercut type)

B. main technical specifications and functions

1. Overall dimension of the equipment: 34m×4.55m×3.2m(L+total width+ H)

2. Quantity of component of foaming material: 13

3. Product Width: 1200mm~2300mm

4. Product Height: ≤1200MM

5. Density: 10Kg/m³~50Kg/m³

6. Capacity: 2000mm/min~7000mm/min

7. Maximum capacity: 200~300L/min

8.Method of Foaming: 1). down spurts, sway (up, down, front, or back adjustable)

2). trough type (match 2 foaming troughs: W1550mm/w2100mm)

9. Membrane lift installment (Flat topping function)

10. Announcing arrestor for material lack( foaming protect function)

11. Drop board of drying tunnel operated height and width by electrically

12. Transportation line of side link joint of drying tunnel operated height and width by electrically

13. The body paper and film put away automatically

14. Easy to change the two mix stirs (Φ100mm) and pre-mixer

15. The Method to control expanding:

1).Control by PLC, kinds of different types of sponge continuously once

2).Entire transducer control, production line synchronization;

16. The Maximum Size of the sponge: 1500mm×2300mm×1300mm(L×W×H).

17. The electrical machinery power of mix stirs: 37kw

18. Total Power: 130kw

70% covered by T/T before delivery or sight confirmed L/C.Terms of Payment: 30% advance payment by T/T upon signing the contract

Installation and Start-up: 2 technicians will be assigned to coordinate installation, commissioning and

training, cost for flight and suitable accommodation plus USD60/day will be charged additionally.

Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.

Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
