Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
| Place of Origin: | China |
|---|---|
| Brand Name: | D&T |
| Model Number: | DTFS1210 |
| Minimum Order Quantity: | 1set |
| Price: | USD 20000-35000 /PC |
| Packaging Details: | wooden box |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T, Western Union，paypal |
| Supply Ability: | 20 SETS PER MONTH |
| Outline Od Mould: | 1200*1000 Mm | Max Size Of Product: | 1100*900mm |
|---|---|---|---|
| Weight: | 5300kg | Time: | 50～90S/cycle |
| Drainage Pipe: | DN100 | Motor For Drainage: | 11 Kw |
| Overall Dimensions: | 5.2*2.1*3.7 M | Name: | Eps Shape Moulding Machine |
| Highlight: | eps shape moulding machine,eps foam molding machine |
||

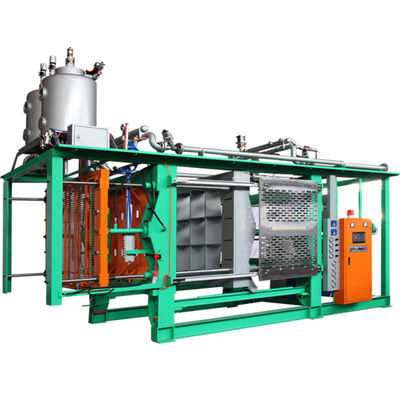

Fast Speed EPS Automatic Shape Moulding Machine
Main features:
1. It is made of 16-22mm steel plate welded with carbon dio*ide shielded welding.All formwork is tempered at high temperature and shot peening at high pressure. It has high strength and high surface hardness.
2. The template is processed by CNC numerical control,high machining accuracy.
3. Horizontal double rotating disc discharging barrel structure,a total of 44 discharging outlet,can fully meet the requirements of customers with multi-product,multi-gun.
4. The heating principle of low pressure and large flow rate is adopted,and double steam valves are equipped.Steam valve is controlled by balance valve and gas control valve,which makes the pressure control of steam more precise.
| Technical Parameters | |||||||
| Subjects | Unit | DTFS1210 | DTFS1410 | DTFS1513 | DTFS1715 | DTFS1816 | |
| Outline of mould | MM | 1200*1000 | 1400*1200 | 1500*1300 | 1750*1500 | 1850*1600 | |
| Size | MM | 1100*900 | 1250*1120 | 1350*1150 | 1600*1400 | 1700*1450 | |
| Steam System | Steam Inlet size | MM | DN80 | DN80 | DN80 | DN100 | DN100 |
| Mold Inlet size | MM | DN25 | DN40 | DN40 | DN40 | DN40 | |
| Inlet pressure | Kg/cm² | 3～6 | 3～6 | 3～6 | 3～6 | 3～6 | |
| Consumption | Kg/cycle | It used to consume 10-12 tons of steam per ton. | |||||
| Cooling Watwe | water Inlet size | MM | DN80 | DN80 | DN80 | DN80 | DN80 |
| Model Intel | MM | DN25 | DN25 | DN25 | DN25 | DN25 | |
| Inlet pressure | Kg/cm² | 3～4 | 3～4 | 3～4 | 3～4 | 3～4 | |
| Consumption | Kg/cycle | 40～120 | 50～140 | 50～160 | 60～180 | 70～190 | |
| Temperature | ℃ | 40～50 | 40～50 | 40～50 | 40～50 | 40～50 | |
| Compress Sured air | Inletsize | MM | DN50 | DN50 | DN50 | DN50 | DN50 |
| Consumption | m³/cycle | 1.5 | 1.8 | 2 | 2 | 2.2 | |
| Inletpressure | Kg/cmt | 4～5 | 4～5 | 4～5 | 4～5 | 4～5 | |
| Vacuum System | Steam Inlet size | MM | DN80 | DN80 | DN80 | DN80 | DN80 |
| Vacuum Flow Rate | m³/h | 165 | 230 | 230 | 280 | 280 | |
| Eletromotor | KW | 4 | 5.5 | 5.5 | 7.5 | 7.5 | |
| time | S/cycle | 50～90 | 50～130 | 70～160 | 80～180 | 90～180 | |
| Drainage Pipe | MM | DN100 | DN150 | DN150 | DN150 | DN150 | |
| Motor for drainage | KW | 11 | 12.5 | 12.5 | 16.5 | 16.5 | |
| Overall Dimensions (L*W*H) | M | 5.2*2.1*3.7 | 5.2*2.3*3.6 | 5.2*2.4*3.8 | 5.3*2.7*4.0 | 5.3*2.8*4.1 | |
| Weight | KG | 5300 | 5900 | 6100 | 7100 | 7400 | |
We have professional person for packing and we have longterm cooperation with our own
cargo agent.They could help us to send the cargo to the place all over the world with safety.For
this point,dear sir,you could believe us.
Pictures of Packing & Shipping
Our Services
1) After-sale Service:
Our engineers is avilable to oversea for coordinate installation, commissioning and training.
Cost for flight and suitable accommodation plus USD 100 per day each person will be charged additionally.
2) Lifetime maintenance free of charge.
3) Free training course at our plant.
4) 24 hours on line service each day; free technical support.
5) Machine has been adjusted and test before delivery.
6) Free to design the Layout of customers' plant by our technician team.
1. Company Information
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,
polyurethane cutting machine, 3D Panel Machine, Concrete Sprayer and foam relation assistant
equipments. Eps Pre-expander machine.Through the research of our engineers, our cutting machine
had connected well with the popularized CAD and achieved automation and high efficiency, high
accuracy and makes iteasy to operate.We always put the customer on the first place and make utmost
efforts to satisfy you.We wholeheartedly look forward to developing economic, technical and trade
cooperation with you.
2.Our Company View
3. Our Team
4. Our Exhibitions
FAQ
1. Q:Are you manufacturer ?
A : Yes,We are manufacturer
2 .Q: Which software do you use?
A : Dear sir,we use the CAD software
3. Q: Which way do you repair your machine
A: Our engineers is avilable to repair oversea
4. Q:Where can I find your cutting vidio?
A : Dear sir,you could find our vidio at YOUTUBE
5. Q:What is your website?
A : Dear sir,our website is www.dtfirm.com
Welcom new and old customers come and visit us!please feel free to contact us for more information!
