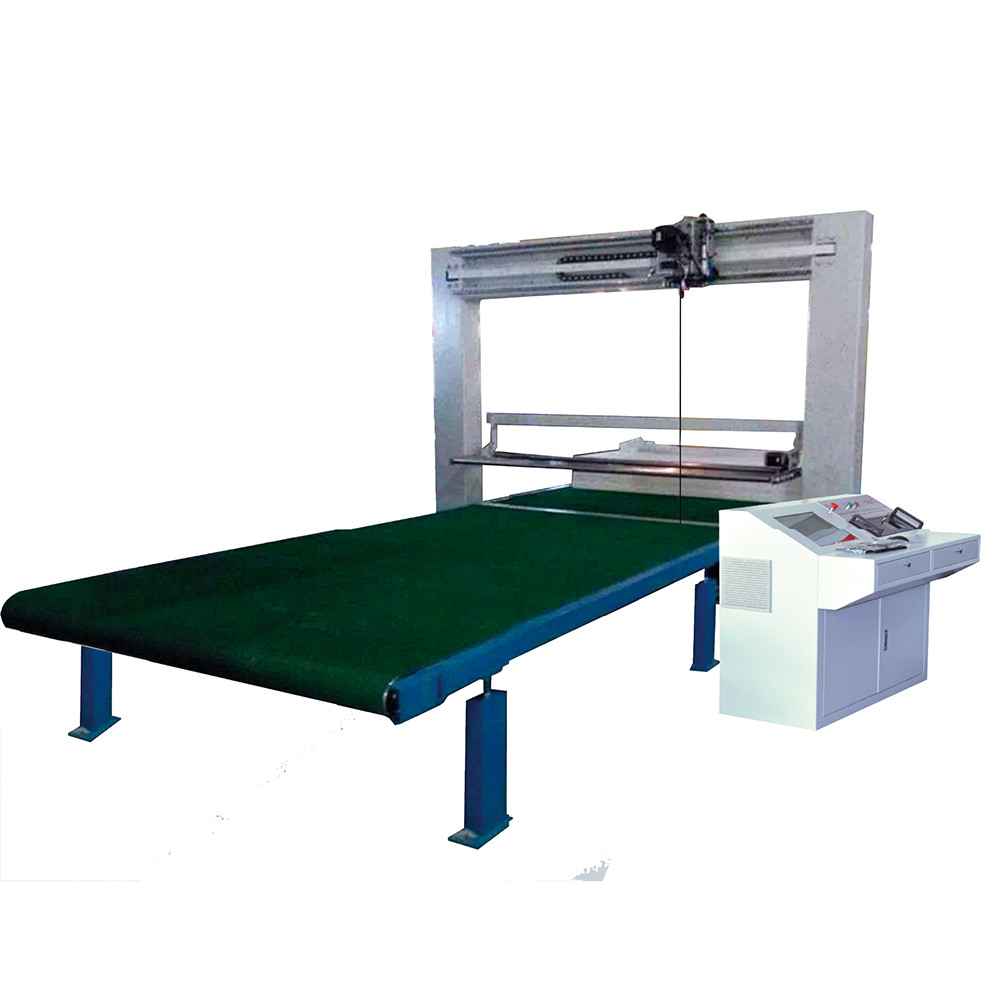

8.5kw CNC Foam Vertical Oscillating Blade Cutter 10m/Min Speed For Rebound Foam , flexible foam
Oscillating Blade Cutter application :Polyurethane, PU soft foam, sticky foam, latex, basotect, composite foam, frame foam, polyethylene.And advantage:1* PC/ Industry computer control, easy operation.2* Worktable:plat working table, moving table (could select)
| Model |
S1212 |
| Max. Product size (customizable) |
Max. Product size (customizable) |
| Blade Size |
3*0.5mm |
| Control System |
Industrial Computer+Win7 with D&T Profiler |
| Cutting Speed |
Cutting Speed |
| Cutting Speed |
4kW,380V,50Hz |
| Blade Tension |
Cylinder Tensioning 6 bar |
| Overall Weight |
1500kg |
| Overall Dimension |
6200*2400*2380mm
|
Description:
1.The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter which is suitable flexible foam. 2.The blade cut with high speed vibrating, so that it will work faster and the product will be smoother.
3.Specially no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.
4.All the machines are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain the best yield from the foam block.
Software question:
1. Q: what kind of CAD software the machine uses?
A: For the CAD software ,our machine uses 2004 or 2006(you prefer )
2. Q: about the CAD software, what's its name?
A: The name is Auto CAD Software
3. Q: where do you sell your machines mostly? which countries?
A:our main market is Russian, Middle East, Canada,USA,Austral,Mexico,Brazil for different kind types
4.Q: the operating system which you use is windows, right? what kind of windows? XP? or Windows 7?
A:Yes ,it is Windows XP. When operated,Our machine doesn't need to use network.We usually use XP for its stability.Also windows 7 is OK.
5. Q:is your software licensed or it's illegal? ("cracked")
A: our own profiler cutting software is develop by ourselves.
6. Q:The differences between our Fast Wire CNC Cutting machine and Oscillating Blade CNC Blade cutting Machine.
A:First,Fast wire cutters use high -speed abrasive wire and Oscillating Blade cutter use high-speed toothed blade.
Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.and for soft foam material, the better cutter is Oscillating Blade CNC cutter.
Thirdly,fast wire CNC cutters also can cut soft material.but the dust from the soft material
needs an extra dust pelletizing system and the soft material also is not good for the fast wire
cutter itself.
Why choose D&T:
-Since 2006, being the leading manufacturing CNC automatic foam cutting machine in China,
-D&T offers the highest price performance foam cutting machine.
-Every D&T product was marked as economic, environmental and easy maintenance.
-With 9 years history in the industry, D&T built a high reputation in South America,
-Eastern Europe, Southeast Asia, and Oceania regions.
-The D&T Industry Co., Ltd. won the customers for our good service and advanced technology.
Welcome to D&T!
Cutting finish product:
