Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | Zhejiang |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-E2012 |
Minimum Order Quantity: | 1set |
Price: | USD20000-40000 / set |
Packaging Details: | PVC and wood package |
Delivery Time: | 30days |
Payment Terms: | T/T, L/C, Paypal |
Supply Ability: | 20 Sets Per Month |
Condition: | New | After-sales Service Provided: | Engineers Available To Service Machine Oversea |
---|---|---|---|
Color: | As Your Request | Max.Foam Block: | 2000×1300×1000mm |
Control System: | Industrial Computer With D&T Special Profiler Software | Cutting Line: | 0.25-1.2mm |
Cutting Speed: | 0~6m/min | Precision: | ±0.5mm |
Power: | 13.5kw 380V 50HZ | Weight: | 1200kg |
Control System: | Industrial Computer | Colour: | Customized |
Product Name: | DT Hot Wire EPS XPS EPP 3D Foam Cutting Machine | ||
Highlight: | XPS 3D Foam Cutting Machine,EPP 3D Foam Cutting Machine,13.5kw 3d Hot Wire Foam Cutter |
Description:

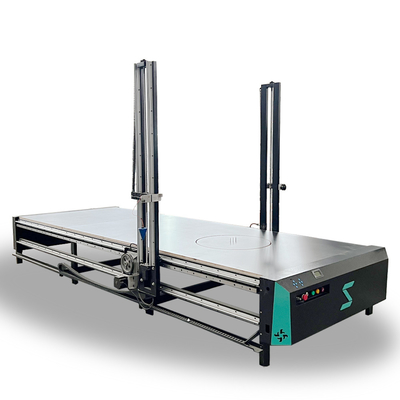

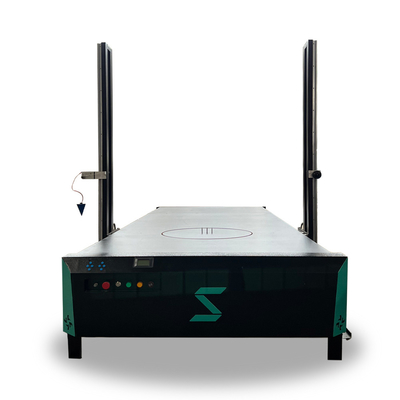

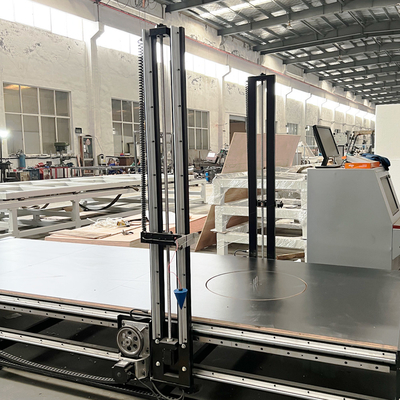

D&T Series Hot Wire Contour Cutter is a special cutting machine which is for complex shapes of EPS products. This kind of cutter has one or several cutting lines for differnt production request.
All the machines are driven by the remarkable D&T Profiler software. which speeds up the design processand enablesthe operator to obtain the best yield form the foam block.

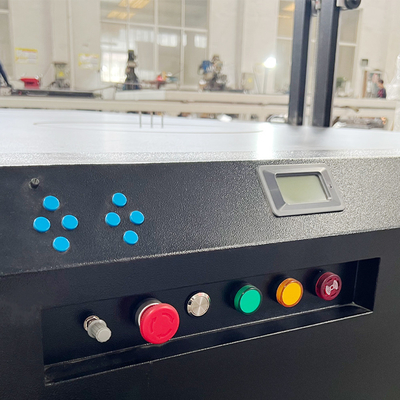

Hot Wire Contour Cutter has perfect safety system to prevent accidents, It includes : All motors wil stop when the safety doors are opened, Exigency buttons on both machine and control box prevent accidents.
Specification:
Model | DTC-E2012 | DTC-E3012 | DTC-E6012 |
Max Product Size | 2000*1300*1000mm | 3000*1300*1300* | 6000*1300*1300mm |
Cutting Line |
0.25-1.2mm |
0.25-1.2mm |
0.25-1.2mm |
Control System |
Industrial System |
Industrial System |
Industrial System |
Cutting Speed | 0-1.5m/min | 0-1.5m/min | 0-1.5m/min |
Power |
13.5kw 380V 50HZ |
13.5kw 380V 50HZ |
13.5kw 380V 50HZ |
Overall Weight | 1200kg | 1500kg | 2000kg |
Application:
EPS products
Software question:
1. Q: What CAD software does the machine use?
A: For CAD software, our machines use 2004 or 2006 (you prefer)
2. Q: What is the name of the CAD software?
A: The name is Auto CAD Software
3. Q: Where are your machines mainly sold? Which countries?
A: Our main markets are Russia, Middle East, Canada, USA, Australia, Mexico, Brazil, for different types
4. Q: The operating system you use is windows, right?
What kind of windows? experience? Or Windows 7?
A: Yes, it is Windows XP.
When operating, the unit does not need to be connected to the Internet
We usually use XP because of its stability. Windows 7 also works.
5. Q: Is your software licensed or illegal? ("crack")
A: Our own Profiler cutting software is developed by ourselves. is original
Q: But what about auto-cad and windows? auto-cad and windows are also original
I ask this question because our company only uses licensed software
A: Windows is licensed; AutoCAD is beta.
Our machines do not include licensed AutoCAD
If you have any drawing software, you can make DXF files.
6. Q: What is the difference between our express line CNC cutting machine and swinging machine
Blade CNC blade cutting machine.
A: First of all, fast wire cutting machine uses high speed abrasive wire and oscillating blade cutting machine
Use high-speed toothed blades.
Second, fast wire CNC cutters are more suitable for rigid or semi-rigid foams. For flexible foam materials,
A better tool is an oscillating blade CNC tool.
Third, fast-line CNC tools can also cut soft materials. But dust on soft materials
Requires additional dust granulation system, soft materials are not suitable for fast production lines
the tool itself.
7. Q: About reputation and website:
A: For the sake of reputation, we are the gold supplier of Alibaba for 8 years.
Our engineers study our machines more and make them better and better. us
Guaranteed our machines are as good as we say they are. Even though we keep the 10% guarantee until
After the machine is installed, the customer is very satisfied with our machine.
Cutting finish product:
