Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | Zhejiang |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-E2012 |
Minimum Order Quantity: | 1set |
Price: | USD20000-40000 / set |
Packaging Details: | PVC and wood package |
Delivery Time: | 30days |
Payment Terms: | T/T, L/C, Paypal |
Supply Ability: | 20 Sets Per Month |
Condition: | New | After-sales Service Provided: | Engineers Available To Service Machine Oversea |
---|---|---|---|
Color: | As Your Request | Max.Foam Block: | 2000×1300×1000mm |
Control System: | Industrial Computer With D&T Special Profiler Software | Cutting Line: | 0.25-1.2mm |
Cutting Speed: | 0~6m/min | Precision: | ±0.5mm |
Power: | 13.5kw 380V 50HZ | Weight: | 1200kg |
Control System: | Industrial Computer | Colour: | Customized |
Product Name: | DTC-E2012 EPS Hot Wire Cutting Machine For 2D And 3D | ||
High Light: | 3D EPS Hot Wire Cutting Machine,2D EPS Hot Wire Cutting Machine,EPS 3d Hot Wire Foam Cutter |
Description:

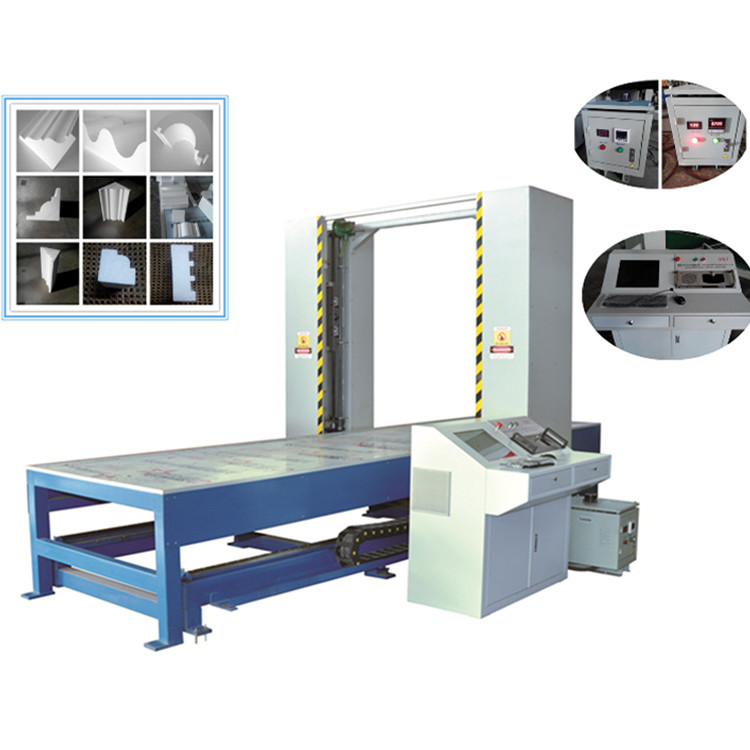

D&T Series Hot Wire Contour Cutter is a special cutting machine which is for complex shapes of EPS products. This kind of cutter has one or several cutting lines for differnt production request.
All the machines are driven by the remarkable D&T Profiler software. which speeds up the design processand enablesthe operator to obtain the best yield form the foam block.
Hot Wire Contour Cutter has perfect safety system to prevent accidents, It includes : All motors wil stop when the safety doors are opened, Exigency buttons on both machine and control box prevent accidents.
Specification:
Model | DTC-E2012 | DTC-E3012 | DTC-E6012 |
Max Product Size | 2000*1300*1000mm | 3000*1300*1300* | 6000*1300*1300mm |
Cutting Line |
0.25-1.2mm |
0.25-1.2mm |
0.25-1.2mm |
Control System |
Industrial System |
Industrial System |
Industrial System |
Cutting Speed | 0-1.5m/min | 0-1.5m/min | 0-1.5m/min |
Power |
13.5kw 380V 50HZ |
13.5kw 380V 50HZ |
13.5kw 380V 50HZ |
Overall Weight | 1200kg | 1500kg | 2000kg |
Application:
EPS products
Software question:
1. Q: What kind of CAD software does this machine use?
A: CAD software, our machine is from 2004 or 2006 (as you choose)
2. Q: Regarding the CAD software, what is it called?
A: The name is Auto CAD Software
3. Q: Where are your machines mainly sold? Which countries?
A: Our main markets are Russia, Middle East, Canada, the United States, Australia, Mexico, Brazil and other different types of products
4. Q: The operating system you use is windows, right?
What kind of windows? XP? or Windows 7?
A: Yes, it is Windows XP.
To operate, our machine does not need to use the network
We usually use XP because of its stability. Windows 7 also works.
5. Q: Is your software legal or illegal? ("Crack")
A: We developed the dissection software by ourselves. It was
Q: But what about auto-cad and windows? Auto-cad and windows are also original
I ask this question because our company only uses licensed software
A: Windows license; AutoCAD is beta.
Our machines do not include licensed AutoCAD
If you have any drawing software, you can make DXF files.
6. Q: What is the difference between our fast line CNC cutting machine and swing cutting machine
Blade CNC blade cutting machine.
A: First, the fast line cutter adopts high speed abrasive line and oscillating blade cutter
Use high-speed toothed blades.
Second, fast-line CNC cutters are better suited for rigid or semi-rigid foams. For soft foam materials,
A better tool is an oscillating blade CNC tool.
Third, fast-line CNC tools can also cut soft materials. But dust on soft materials
Requires an additional dust particle system and soft materials are also not suitable for fast lines
the knife itself.
7. Q: About reputation and website:
A: In terms of reputation, we are Alibaba's gold supplier for 8 years.
Our engineers have done more research on our machines and they are getting better and better. us
Guaranteed our machines will be as good as we say they are. Even we keep 10% as a guarantee
Get the machine installed and make the customer happy.

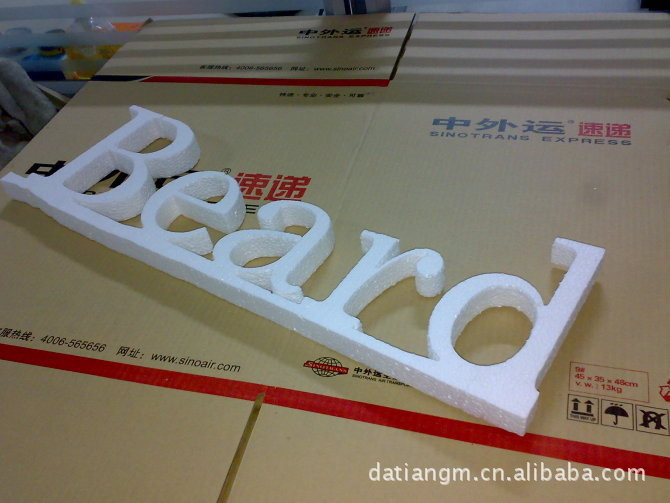

Cutting finish product:
