Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | China |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | FAV 1750 |
Minimum Order Quantity: | 1 set |
Price: | USD 10000-60000/ SET |
Packaging Details: | packed with pvc film |
Delivery Time: | 50 Days |
Payment Terms: | T/T, L/C, Paypal |
Supply Ability: | 10 SETS PER MONTH |
Mould Dimension: | 1200 * 1050 Mm | Max Product Dimension: | 1600 * 1300 *420 Mm |
---|---|---|---|
Stroke: | 150 -1500 | Steam Entry: | 4" (DN 100) Inch |
Steam Consumption: | 8 -12 Kg / Cycle | Steam Pressure: | 0.5 - 0.7 Mpa |
Cooling Water Entry: | 3"(DN 80) | Cooling Water Pressure: | 0.3 - 0.5 Mpa |
Cooling Water Consumption: | 55 - 180 Kg / Cycle | Compressed Entry: | 2" (DN 50) |
Compressed Consumption: | 2 M³ / Cycle | Compressed Pressure: | 0.5 - 0.7 Mpa |
Drainage: | 6" ( DN 150) | Capacity 15 Kg / M³: | 80 - 150 S |
Connected Load /Power: | 16.5 KW | Overall Dimension: | L 4700 * W 2030 *H 3450 Mm |
Weight: | 6000 Kg | ||
High Light: | Hydraulic Release EPS Shape Molding Machine,Automatic EPS Shape Molding Machine,FAV 1750 EPS Shape Molding Machine |

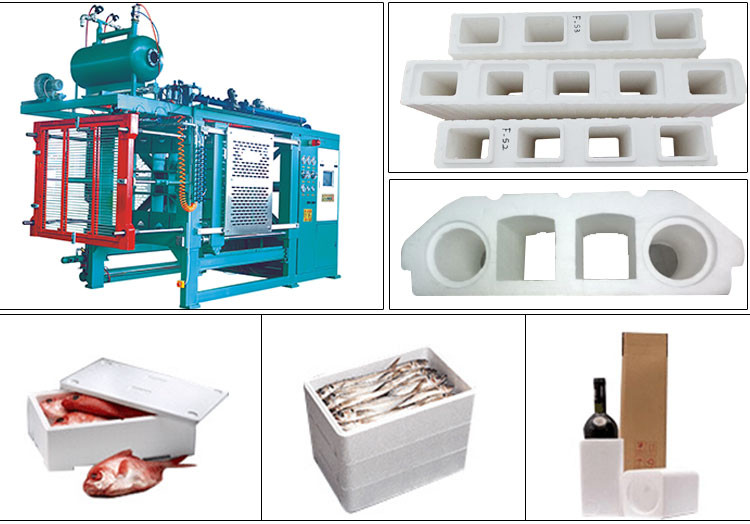

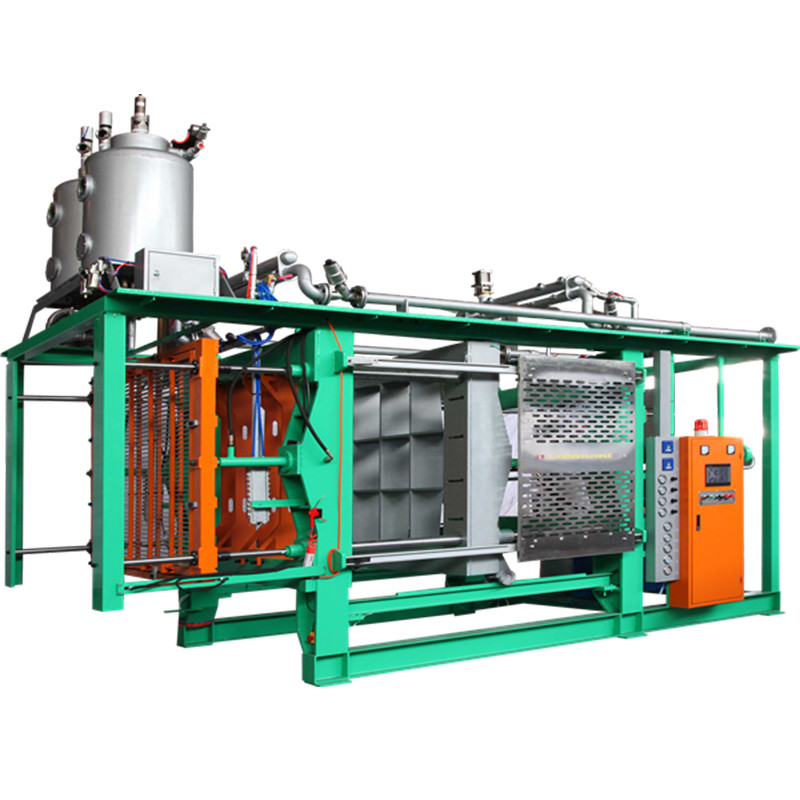

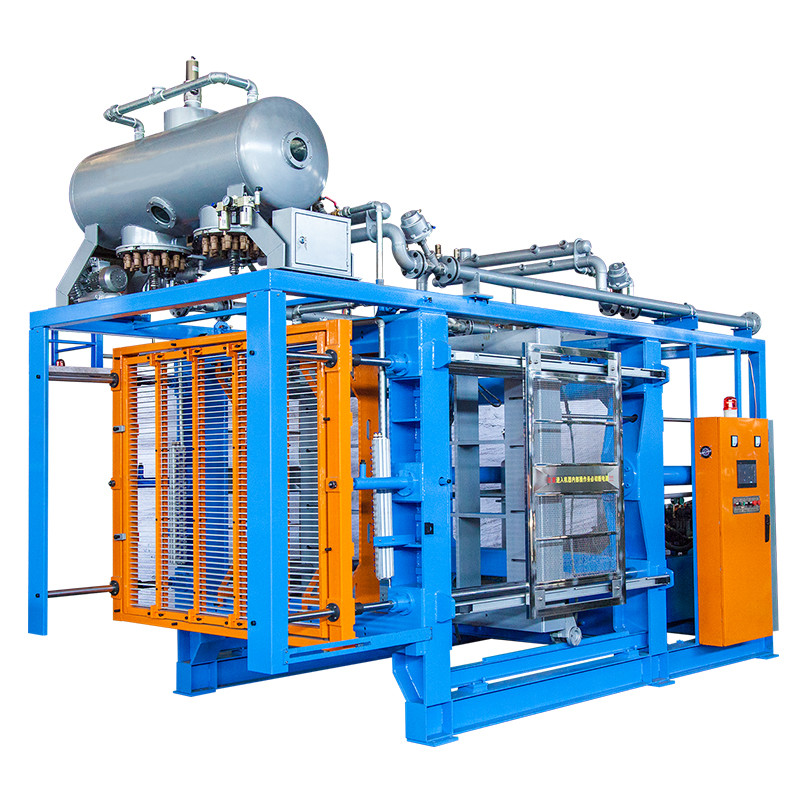

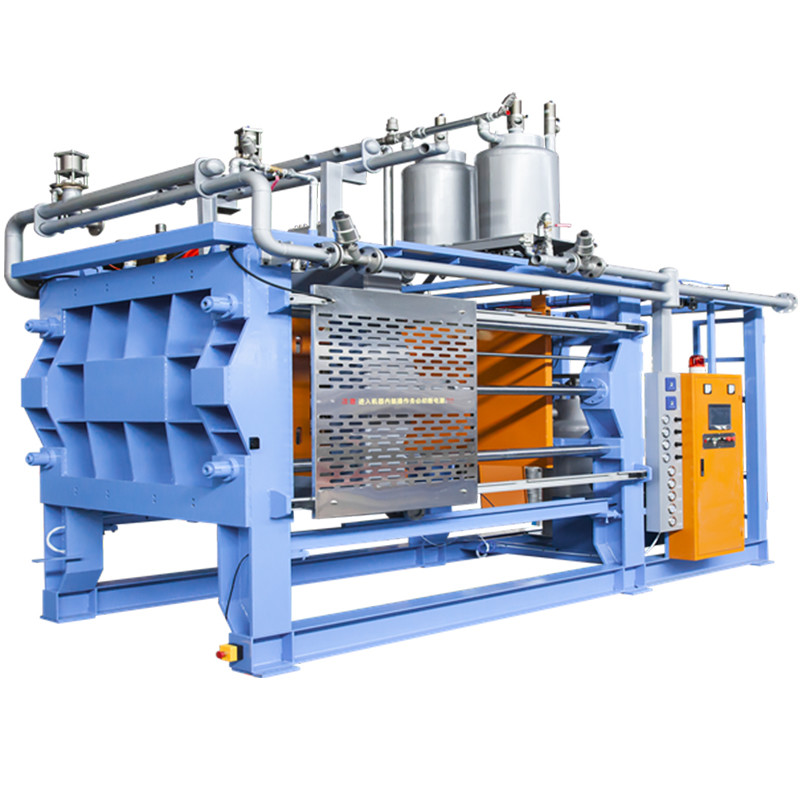

Hydraulic Release EPS Shape Forming Machine Automatic, Easy Operation
Reasons to choose us:
1. Europe's leading technology and independent professional R&D team.
2. High quality products: All machines are approved by CE & ISO9001 certificates.
3. Domestic and worldwide reputation: We have domestic service over 10,000plants,
Exported to over 50 countries.
4. Reliable Service: We have a customer service center with 20 engineers
We specialize in worldwide offshore services for installation, commissioning and maintenance
After-sales service for customers.
application:
1. The machine adopts PLC programmable controller and touch human-machine interface control.
Advanced foam molding process allows us to produce a wide variety of products.
2. The machine produced a variety of foam products, low power consumption, size and stability.
3. Automatic, semi-automatic and manual operations that can be performed on the machine are:
Four operating modes with safeguards ensure safety and peace of mind.
Reliable operation.
4. The machine uses a programmable controller and touches the human-machine interface.
Production control management by executable computer, high degree of automation,
Easy operation, easy maintenance and finally labor intensity.
5. The machine adopts international advanced electrical and hydraulic integration,
Improve product forming speed, greatly reduce energy consumption,
Reduce environmental pollution.
6. Machines use different heating progressions, different feeding methods and cooling.
7. Mechanical vacuum system to accelerate the speed of product effect,
Reduces cooling time and lowers product moisture content.
8. The machine uses control equipment, electrical, pneumatic components, valves, etc.
We support high-quality brand products in Japan and overseas.
9. Aircraft complete fault diagnosis and motor overload protection system, relay protection,
Ensure the safe operation of PLC and touch human-machine interface.
10. Aircraft FAV1400 type machine mold box to Unviversal 1000- 1400mm mold,
Universal 1400-1750mm mold from FAV 1750 mold box.
11. Aircraft are available with mechanical or hydraulic release models.
Pneumatic demolding, mold movement by two hydraulic cylinders
Technology Data:
|
Cooling Water |
Entry |
Inch |
3’’(DN80) |
Consumption |
Kg/Cycle |
55~180 |
|
Pressure |
Mpa |
0.3-0.5 |
|
Compressed Air |
Entry |
Inch |
2’’(DN50) |
Consumption |
m³/Cycle |
2 |
|
Pressure |
Mpa |
0.5~0.7 |
|
Drainage |
Inch |
6”(DN150) |
|
Capacity 15Kg/m³ |
S |
80~150 |
|
Connected Load/Power |
Kw |
16.5 |
|
Overall Dimension(L*W*H) |
mm |
4700*2030*3450 |
|
Weight |
Kg |
6000 |
Terms:
Payment terms: 30% advance payment by T/T when signing the sales contract
70% will be covered by irrevocable L/C confirmed visually or by T/T before shipment.
Delivery: 60 days after receipt of advance payment.
Installation and startup:
Two technicians are assigned to coordinate the installation.
commissioning and training; flight ticket costs;
Appropriate accommodation and a surcharge of USD 100 per day
Each work fee is borne by the purchaser,
Warranty: 12 months limited warranty
Consumables are excluded from the date of arrival.
You are responsible for shipping costs for replacement parts during the warranty period.
