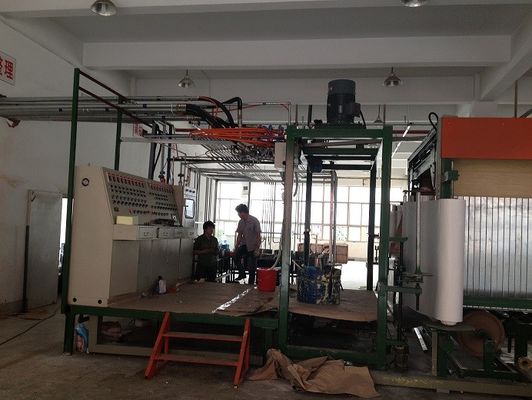

High Effeiciency Sponge Foam Production Line Full Automatic Horizontal Continuous

1 set
MOQ
USD50000~200000/SET
Price
High Effeiciency Sponge Foam Production Line Full Automatic Horizontal Continuous
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Sponge Making Machine
Overall Dimension: 34m*4.55m*3.2m
Product Height: Max. 1200mm
Product Width: 1200mm~2300mm (adjutable)
Density: 10Kg/m³~50Kg/m³
Capacity: 2000mm/min~7000mm/min
Maximum Capacity: 200~300L/min
Foaming Model: Full Automatic
Total Power: 130kw
Raw Material: PPG, TDI, MC, A33, T9, Silicone Oil, H2O, Pigment, Ect
Application Area: Sponge, Polyurethane Foam, Mattress, Furniture
Highlight:

foam production machine

,

eps foam production line

,

High Efficiency Sponge Foam Production Line

Basic Infomation
Place of Origin: China
Brand Name: D&T
Model Number: DTPUF-2400
Payment & Shipping Terms
Packaging Details: packed with PVC film and load into 1*40HQ
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10 SETS PER MONTH
Product Description

High Effeiciency Sponge Foam Production Line Full Automatic Horizontal Continuous



A. main technical specifications and functions:



1. Overall dimension of the equipment: 34m×4.55m×3.2m(L+total width+ H)

2. Quantity of component of foaming material: 13

3. Product Width: 1200mm~2300mm

4. Product Height: ≤1200MM

5. Density: 10Kg/m³~50Kg/m³

6. Capacity: 2000mm/min~7000mm/min

7. Maximum capacity: 200~300L/min

8. Method of Foaming: 1). down spurts, sway (up, down, front, or back adjustable)

                                     2). trough type (match 2 foaming troughs: W1550mm/w2100mm)

9. Membrane lift installment (Flat topping function)

10. Announcing arrestor for material lack( foaming protect function)

11. Drop board of drying tunnel operated height and width by electrically

12. Transportation line of side link joint of drying tunnel operated height and width by electrically

13. The body paper and film put away automatically

14. Easy to change the two mix stirs (Φ100mm) and pre-mixer

15. The Method to control expanding:

      1).Control by PLC, kinds of different types of sponge continuously once

      2).Entire transducer control, production line synchronization;

16. The Maximum Size of the sponge: 1500mm×2300mm×1300mm(L×W×H).

17. The electrical machinery power of mix stirs: 37kw

18. Total Power: 130kw



B. specifications of each component:



1. Stirs mix rack and spongy control platform 4m×3.2m×3.2m(L×W×H)

2. Drop board of drying tunnel 17.5m×2.4m×1.2m(L×W×H)

3. Side link joint of drying tunnel 17.5m×2.4m×1.2m(L×W×H)

4. Rack of drying oven 16.9m×4.55m×3.2m(L×W×H)

5. Level transportation line in the drying tunnel 17.5m×2.4m×0.8m(L×W×H)

6. The width of sponge wadding for cutting machine 2.4m×1.30m (W×H)

(Undercut type)



C. Instruction of Main Disposition and Material



1. Raw Material Pot (Atmospheric pressure)



Type

Usage

Specification

Quantity

Big pot

PPG

6m³/δ 5mmA3 Carbon Steel with constant

temperature

1

Big pot

PPG+ Powder,

white oil

4m³/δ 5mmA3 Carbon Steel with constant

temperature system

2

Big pot

TDI

4m³/δ 4mm Stainless Steel, stirs with constant

temperature

1

Big pot

MC

2m³/δ 3mm Stainless Steel, with constant

temperature

1

Pot

Water

400L/δ 1.5mm Stainless Steel,with Automatic

water-adding system and water filter

1

Pot

Silicon Oil,

Fireproof, Black

200L/δ 1.5mm Stainless Steel

3

Pot

Amine, Stannum,

Color Matter

120L/δ 1.5mm Stainless Steel

4

Pot



Stone powder stirs

1.0m³/δ  3mm/A3 steel strap stirs

1

Pot

MC

118L standard pot

1



Features:



This machine is mostly used for producing of soft urethane foam rubber productions

(density is about 10-50kg/m³).

It’s automaton-action level is high.the production is low low cost and the operation is

simple.It is desirable equipment to manufacture products of foam rubber in furniture,

shoes,circumference,electron clothing andautomobile industry.




Terms of Payment: 30% advance payment by T/T upon signing the contract

                              70% covered by T/T before delivery or sight confirmed L/C.



Installation and Start-up: 2 technicians will be assigned to coordinate installation,commissioning and

training, cost for flight and suitable accommodation plus USD80/day will be charged additionally.



Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.

                Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
