Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
| Place of Origin: | China |
|---|---|
| Brand Name: | D&T |
| Certification: | CE |
| Model Number: | FAV 1200E |
| Minimum Order Quantity: | 1 set |
| Price: | USD 10000-60000/ SET |
| Packaging Details: | packed with pvc film |
| Delivery Time: | 50 Days |
| Payment Terms: | T/T, L/C, Paypal |
| Supply Ability: | 10 SETS PER MONTH |
| Mould Dimension: | 1200 * 1000 Mm | Max Product Dimension: | 1050 * 850 *350 Mm |
|---|---|---|---|
| Stroke: | 150 -1200 | Steam Entry: | 50 MM |
| Steam Consumption: | 6 Kg / Cycle | Cooling Water Entry: | 50 MM |
| Cooling Water Consumption: | 50 - 150 Kg / Cycle | Compressed Entry: | 40 Mm |
| Compressed Consumption: | 1.5 M³ / Cycle | Drainage: | 100 Mm |
| Vacuum Pump Capacity: | 230 M³ / H | Connected Load /Power: | 6.6 |
| Weight: | 2600 Kg | Cycle Time: | 70 - 140 S |
| Highlight: | eps shape moulding machine,eps foam molding machine,Eps Moulding Machine High Automation |
||
Application:
1. The machine vertical layout.
Movet in all hydraulic transmission.
Machine aports a smooth,
quilck mould clamping.
Clamping force.
Small Mold discouraged under this to work.
Save time.
2. This machine adopts:
the most advanced Taiwanese computer touch screen
and high-Korea proggrammable controllers,
degree of automation,
easy to operate.
3. Using a variety of foaming stripping ways
to make the aircraft moreeconomical steam(province than
the average machine half),greatly improving the product quality.
4 .Easy to operate,
the operater simplyremove the product,
you can learn a little inducyion without training.

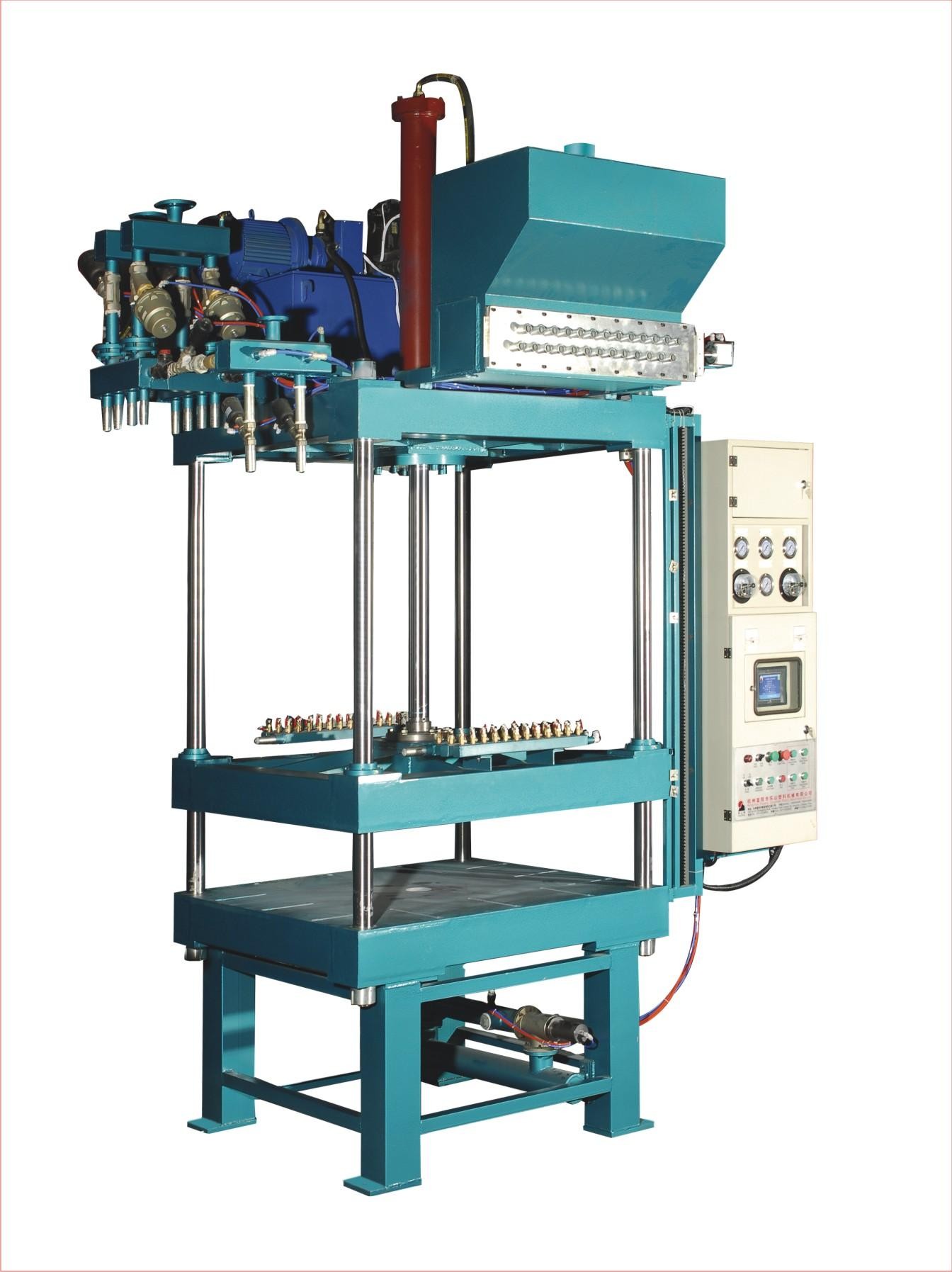

1. Auto Shape Molding Machine
2. color steel body with best jointing
3. PLC control shape molding
Technical Data :
|
Item |
Unit |
FAV1200E |
|
|
Mould Dimension |
mm |
1200*100 |
|
|
Max Product Dimension |
mm |
1050*850*350 |
|
|
Stroke |
mm |
150-1200 |
|
|
Steam |
Entry |
mm |
50 |
|
Consumption |
Kg/Cycle |
6 |
|
|
Compressed Air |
Entry |
mm |
40 |
|
Consumption |
m³/Cycle |
1.5 |
|
|
Cooling Water |
Entry |
mm |
50 |
|
Consumption |
Kg/Cycle |
50-150 |
|
|
Vacuum Pump Capacity |
m³/h |
230 |
|
|
Drainage |
mm |
100 |
|
|
Cycle time |
s |
70-140 |
|
|
Connected Load/Power |
kw |
6.6 |
|
|
Weight |
Kg |
2600 |
|
Terms:
Terms of Payment: 30% advance payment by T/T upon signing of sales contract
70% covered by confirmed irrevocable L/C
by sight or T/T before shipping.
Delivery: 60 days after receipt of advance payment.
Installation and Start-up:
TWO technicians will be assigned to coordinate installation,
commissioning and training; cost for flight ticket,
suitable accommodation and additional USD 100/day
each work fee will be covered by Buyer,
Warranty: 12 months limited warranty
starting from date of arrival excluding wear parts.
Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
