380V 50HZ Electric Wire Hot Wire CNC EPS Cutter For Polystyrene Foam

1 set
MOQ
USD 5000 - 40000 / set
Price

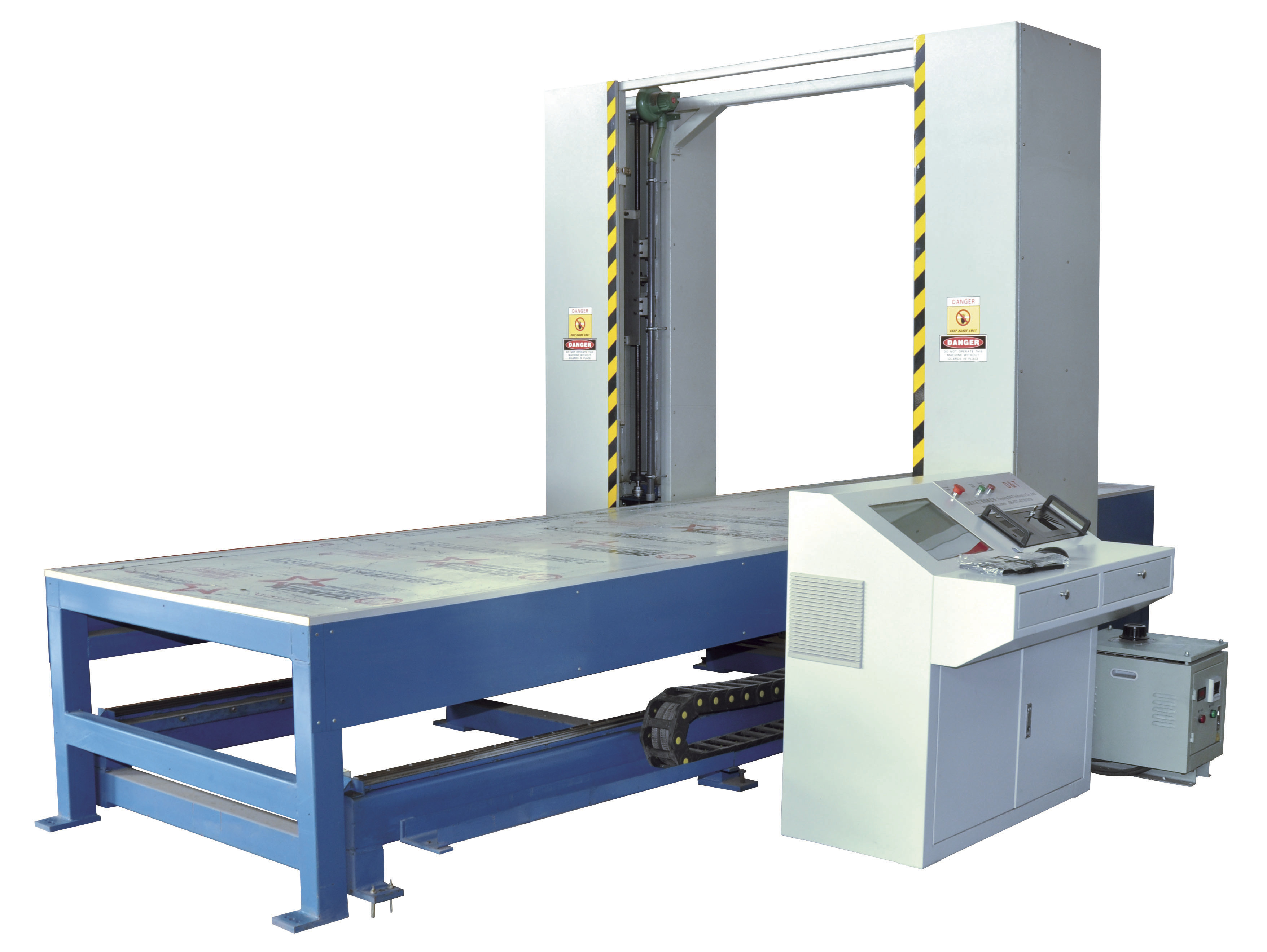

380V 50HZ Electric Wire Hot Wire CNC EPS Cutter  For Polystyrene Foam
Features Gallery Product Description Request A Quote
Features
Specifications
Item: Hot Wire Contour Cutter
Type: DTC-E2012
Product Size: 2000*1300*1000mm
Cutting Line Diameter: 0.5-1.2mm
Control System: Industrial Computer
Cutting Speed: 0-1.5m/min(adjusted)
Precision: ±1mm
Power: 13.5kw,380v,50hz
Weight: 1200kgs
Color: As Cliebts Requirement
Name: Eps Cutting Machine
Warranty: 1 Year
Highlight:

automatic tape edge machine

,

tape edging machine

,

380V Hot Wire CNC EPS Cutter

Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: D&T
Certification: CE
Model Number: DTC-E2012
Payment & Shipping Terms
Packaging Details: Film + wooden box
Delivery Time: 40 working days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets / month
Product Description



380V 50HZ Electric Wire Hot Wire CNC EPS Cutter  For Polystyrene Foam


1. Main Introduction:


1  Main frame: aluminum alloy profile connected by special joints with
    stable function and performance, reasonable structure, high precision,
    easy and convenient operation which can save time, strength and raw material.

2  Full automatic industrial control system

3  Draw all kinds figures with CAD/CAM on computer and cut directly,
    or can cut after the cutting file is run from U-disc.

4  With convenient operating interface, the machine can display the parts to the cut,
   follow the cutting path as well as their respective status
   such as limits, alarm, operation conditions of each axis, etc.


5  With high strength and stability mechanical design,
    the machine can work smoothly with numerical control system
   and there is no need to adjust.

6 The machine has double track notion design with high precision,  which is durable.



2. Description Of 2D EPS cutting machine

Suit for: Polystyrene
Cutting line: Hot Wire

D&T series 2D EPS cutting machine is a special cutting machine,
which is for complex shapes of EPS products.
THis kind of cutter has one or sevaral cutting lines for different production request.

All the machines are driven by the remarkable D&T Profiler software,
which speeds up the design process and enables the operator to
obtain the best yield from the foam block.

Fast Wire Contour Cutter has perfect safe system to provide the accident.

It includes: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident;
brake system when cutting line broken.


 3. Technical Data of  2D EPS cutting machine


TECHNICAL DATA
Type DTC-C2012 DTC-E3012 DTC-E6012
Max. Product Size 2000*1300*1000mm 3000*1300*1300(mm) 6000*1300*1300(mm)
Cutting    Line 0.5~1.2mm
Control    System Industrial    Computer
Software D&T    Profiler D&T    Profiler D&T    Profiler
Cutting    Speed 0~1.5m/min 0~1.5m/min 0~1.5m/min
Precision                                                 ±1mm
Power 13.5kw, 380v, 50hz 14.5kw, 380v, 50hz 14.5kw, 380v, 50hz
Overall    Weight 1200kg 1500kg 2000kg



























4. Company Information



 Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,


polyurethane cutting machine, quilting machine,mattress spring coiling machine  and foam relation assistant

equipments. Through the research of our engineers, our cutting machine had connected well

with the popularized CAD and achieved automation and high efficiency, high accuracy and

makes it easy to operate.We always put the customer on the first place and make utmost efforts

to satisfy you.We wholeheartedly look forward to developing economic, technical and trade

cooperation with you. Products: Fast wire cutting machine, pu cutting machine, hot wire cutting

machine, eps cutting machine, quilting machine and so on.

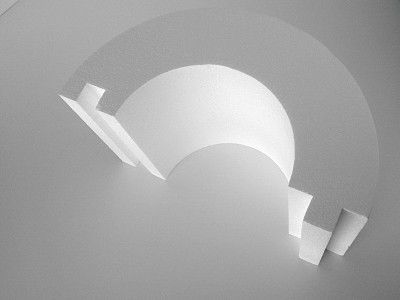

5. Samples for Cutting Product

  380V 50HZ Electric Wire Hot Wire CNC EPS Cutter  For Polystyrene Foam 0
