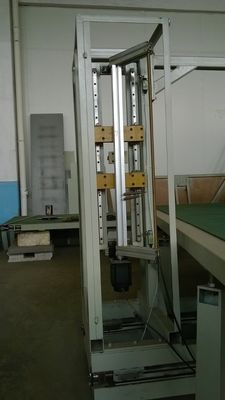

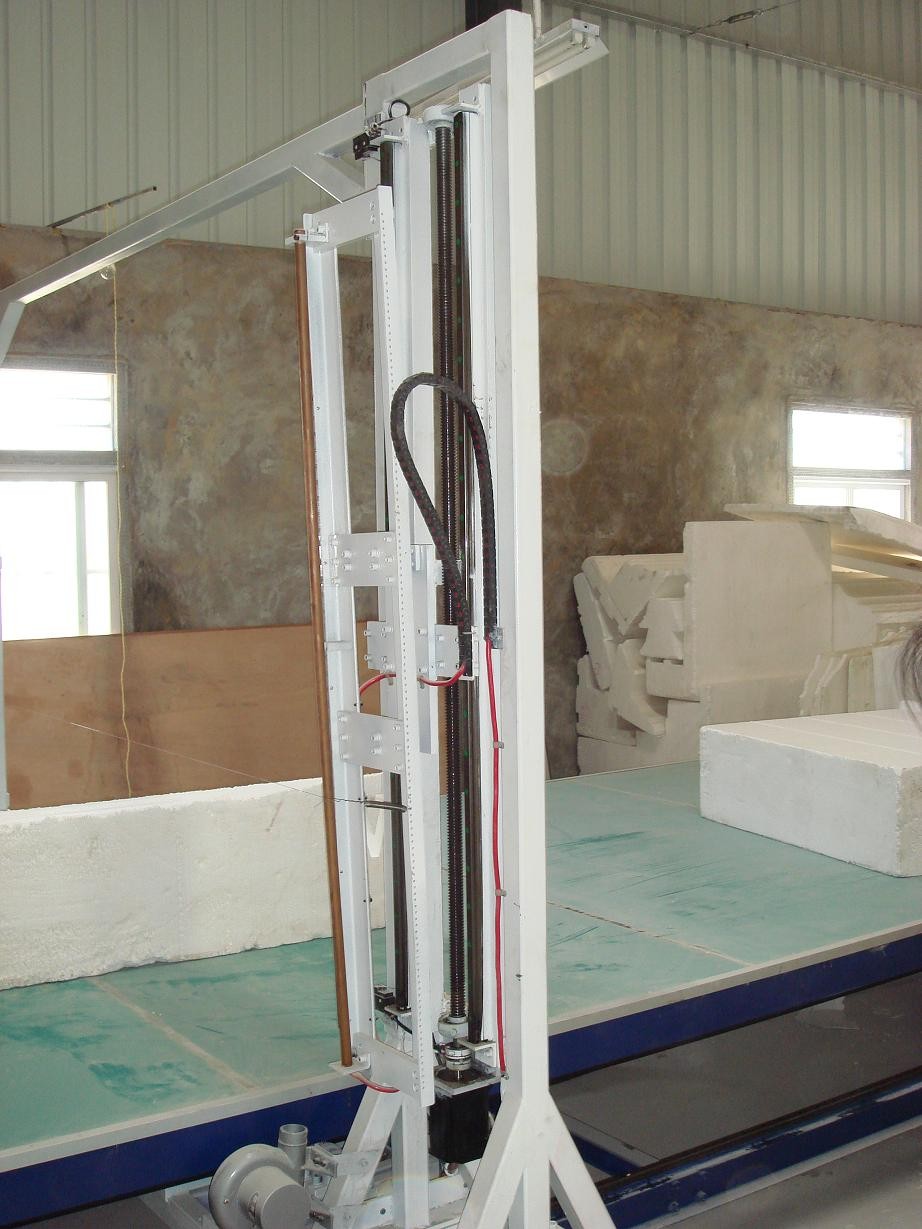

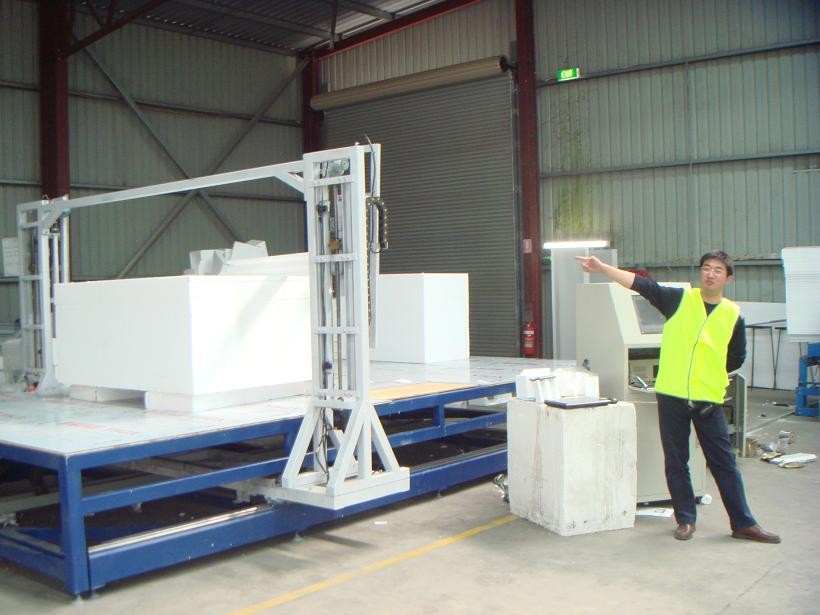

2D / 3D Hot Wire EPS Foam Cutting Machine 380V , Polyurethane Cutting Machine
CNC 2D EPS cutting machine/polystyrene foam cutting machine/styrofoam
cutting machine/ eps block cutter/ electric hot wire eps cutter
1. Description Of 2D EPS cutting machine
Suit for: Polystyrene
Cutting line: Hot Wire
D&T series 2D EPS cutting machine is a special cutting machine, which is for
complex shapes of EPS products. THis kind of cutter has one or sevaral cutting lines
for different production request.
All the machines are driven by the remarkable D&T Profiler software, which speeds up
the design process and enables the operator to obtain the best yield from the foam block.
It includes: All Motor will stop when the safety door be opened; Exigency button on both
machine and control box for accident; brake system when cutting line broken.
2. Technical Data of 2D EPS cutting machine
| TECHNICAL DATA | |||
| Type | DTC-E2012 | DTC-E3012 | DTC-E6012 |
| Max. Product Size | 2000*1300*1000mm | 3000*1300*1300(mm) | 6000*1300*1300(mm) |
| Cutting Line | 0.5~1.2mm | ||
| Control System | Industrial Computer | ||
| Software | D&T Profiler | D&T Profiler | D&T Profiler |
| Cutting Speed | 0~1.5m/min | 0~1.5m/min | 0~1.5m/min |
| Precison | ±1mm | ||
| Power | 13.5kw, 380v, 50hz | 14.5kw, 380v, 50hz | 14.5kw, 380v, 50hz |
| Overall Weight | 1200kg | 1500kg | 2000kg |
