Home /Products/Foam Production Line/35KW Sponge Mattress Foam Production Line High Speed 220L / Mould

35KW Sponge Mattress Foam Production Line High Speed 220L / Mould

1set
MOQ
USD35000~56000 / Set
Price
35KW Sponge Mattress Foam Production Line High Speed 220L / Mould
Features Gallery Product Description Request A Quote
Features
Specifications
Item: Batch Box Foaming Machine
Product Size: 3000*2000mm
Product Height: Below 1100mm
Chemical: PPG, TDI, MC, Silicone+H2O, T9, A33, Etc.
Density: 10Kg/m³~60Kg/m³
Maximum Capacity: 220L/mould
Production Capacity: 230kg/h
Total Power: 35KW
Foaming Model: Semi-automatic
Application Area: Sponge, Polyurethane Foam, Mattress, Furniture
Highlight:

foam production machine

,

foam making machinery

,

Mattress Foam Production Line 220L / Mould
Basic Infomation
Place of Origin: China
Brand Name: D&T
Model Number: DTPUF-75
Payment & Shipping Terms
Packaging Details: packed with pvc film into 1*40HQ
Delivery Time: 45days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 10 sets per month
Product Description

35KW Sponge Mattress Foam Production Line High Speed 220L / Mould





Product Description


2). Main Technology Data:



     Max.Product Size: 2400mm×2000mm (L×W)

     Max. Product Height: 1200mm

     Quantity of component of foaming material: 7 (PPG, TDI, MC, Water, Silicone oil, T9,A33)

     Density: 10Kg/m³~60Kg/m³

     Maximum capacity: 150L/mould, discontinual Foaming(two moulds), 6~10 blocks per hour

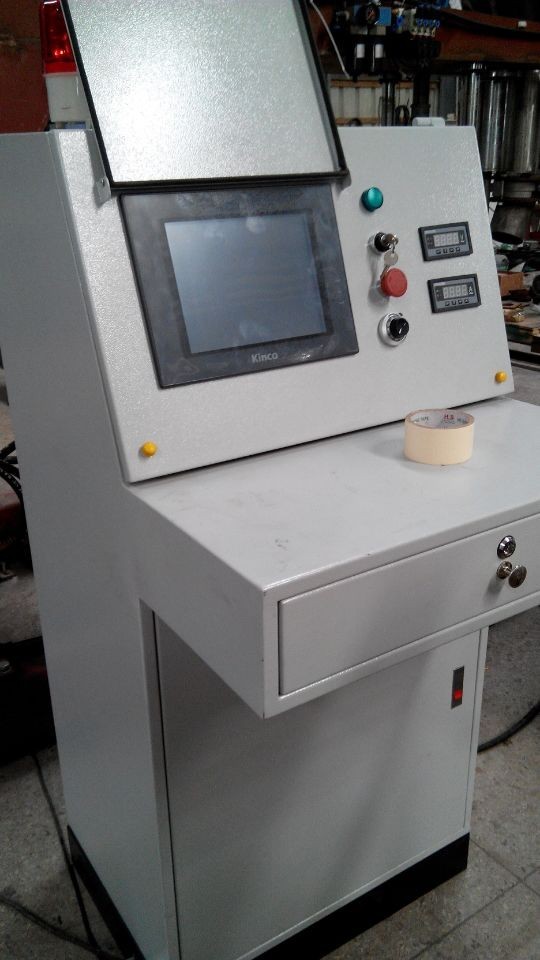

     Touch scream and semi-automatic control system with 100 foaming formula

     Power of Mixing Head: 7.5kw(Brake motor)

     Total Power: 30KW





3). Configuration



      3.1 Components (total 7 components)



No.

Component

 Material Tank

Out-feed Pump

specification

1

PPG

3 Ton,A3 Steel

  CB-7

Feeding Pump, Mixing device, Constant

Temperature Coil, Material Tank Thermometer,

  Liquidometer

2

TDI

2 Ton,A3 Steel

NB2-C32F

Feeding Pump, Mixing device, Constant

Temperature Coil, Material Tank Thermometer,

 Liquidometer

3

MC

500L

2mm Stainless

Steel

NB2-D10F

Feeding Pump, Liquidometer

4

T9



50L

1mm Stainless

Steel

HGP-2A-F2R





5

Silicone Oil

50L

1mm Stainless

Steel

HGP-2A-F2R





6

A33



50L

1mm Stainless

Steel

HGP-2A-F2R





7

Water

50L

1mm Stainless

Steel

HGP-2A-F4R











Terms:



Terms of Payment: 30% advance payment by T/T upon signing the contract

70% covered by T/T before delivery



Installation and Start-up:

2 technicians will be assigned to coordinate installation, commissioning and training,

cost for flight and suitable accommodation plus USD60/day will be charged additionally.



Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.

Shipping cost for parts to be replaced during warranty period have to be borne by the customer.







3.2 Mould

   Quantity: 2sets

   Size: W2100*L2450*H1200mm



35KW Sponge Mattress Foam Production Line High Speed 220L / Mould 0
