Eps Polyurethane PU Foam Sandwich Wall Panel Making Machine Continuous PU/PUR/PIR Sandwich Panel Production Line

Continuous PU/PUR/PIR Sandwich Panel Production Line

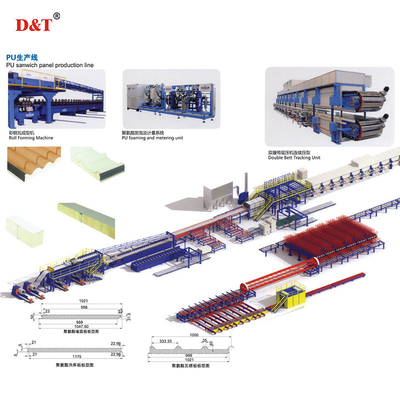

The whole PU Sandwich Production Line includes uncoiling system, film covering and cutting system, roll forming machine, preheating oven, high pressure foaming system, double belt conveyor, double belt heating device, cutting system, etc.

PU Sandwich Panel Production Line Introtuction:

The whole PU sandwich panel production line work process: Uncoiler will uncoil the steel sheet which goes to the roll forming machine. Then the upper and down roll formed panel will go to the double belt press machine while the PU foaming machine inject the PU inside at the same time. After 24m movement and heating, they will get sticked and come out of the press machine. Then the cutting machine will cut the panel into pieces. Then it can goes for the packing.

Panel shape can be tailor-made according to customer's detailed requirements.

Main Parameters

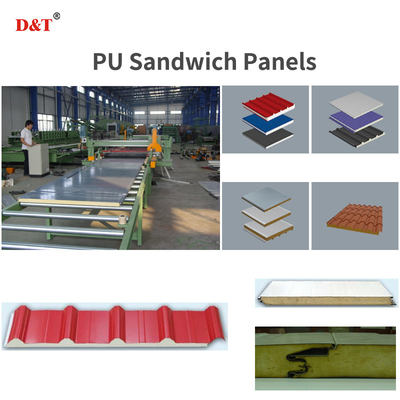

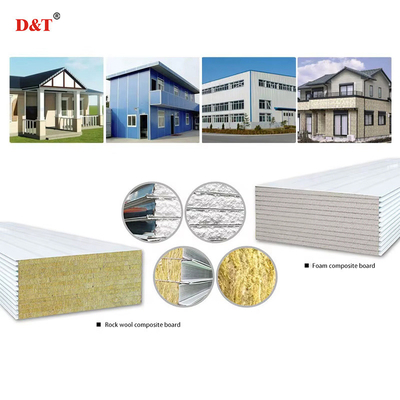

♦ PU sandwich panels are used for cooling board, wall panel and roof panel.
♦ linner speed: 0-6m/min 24m long double belt tracking unit
♦ 0-12m/min 36m long double belt tracking unit
♦ 4 or 6 component PU injection machine

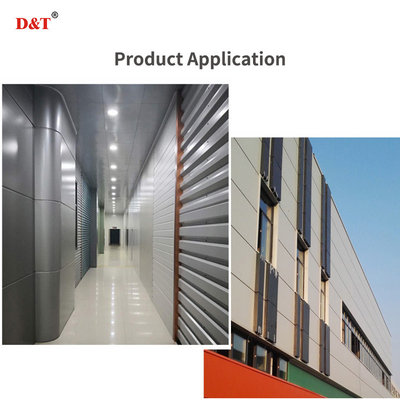

Product Application

Product Parameter
