EPS Sandwich Panel Roll Forming Machine/roof Tile Production Line Automatic Rock Wool Provided Color Steel Sheet

1
MOQ
＄15000
Price
EPS Sandwich Panel Roll Forming Machine/roof Tile Production Line Automatic Rock Wool Provided Color Steel Sheet
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

EPS sandwich panel roll forming machine

,

automatic roof tile production line

,

rock wool color steel sheet machine
Basic Infomation
Brand Name: D&T
Certification: CE
Model Number: SPM1000PR
Payment & Shipping Terms
Delivery Time: 45
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

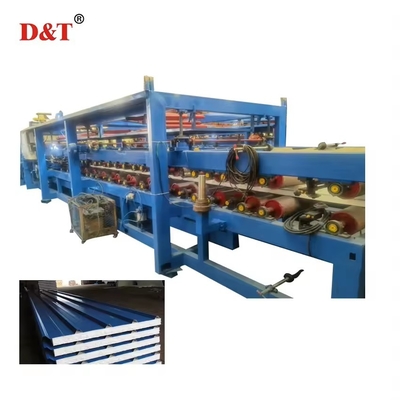

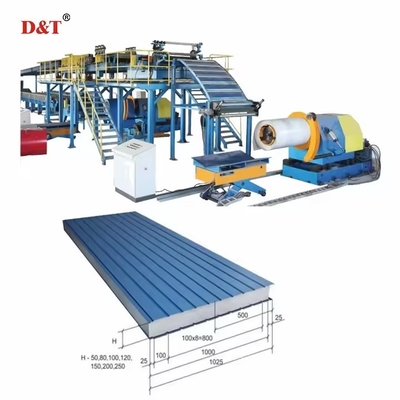

EPS Sandwich Panel Roll Forming Machine/Roof Tile Production Line
The continuous PU (polyurethane) sandwich panel production line is specially designed for producing Z-lock PU sandwich panel continuously. The facing material of this panel can be PPGI, Aluminum foil, PVC sheets, etc and the core materials can be Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS.
EPS Sandwich Panel Roll Forming Machine/roof Tile Production Line Automatic Rock Wool Provided Color Steel Sheet 0
Key Features
  • Panel shape can be tailor-made according to customer's detailed requirements
  • PU sandwich panels are used for cooling board, wall panel and roof panel
  • Available in different configurations:
    • 0-6m/min with 24m long double belt tracking unit
    • 0-12m/min with 36m long double belt tracking unit
    • 4 or 6 component PU injection machine
EPS Sandwich Panel Roll Forming Machine/roof Tile Production Line Automatic Rock Wool Provided Color Steel Sheet 1
Technical Specifications
Item Parameters
Model SPM1000ER-Ⅲ | SPM1000ER-IV | SPM1000ER-V
Suitable surface, core material Color Steel Sheet/EPS | Color Steel Sheet/EPS | Color Steel Sheet/EPS,Rockwool
Working speed (m/min) 1-3 (Inverter adjustment)
Operation Controller Touchscreen+button/PLC
Total Power (KW) 42 (Including heating motor power)
Total size (L x W x H) (mm) 40000x3600x3300 | 40000x3600x3300 | 45000x3600x3300
