Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and CNC cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
| Place of Origin: | Zhejiang |
|---|---|
| Brand Name: | D&T |
| Model Number: | DTC-S2012B |
| Minimum Order Quantity: | 1set |
| Price: | USD40000-80000/set |
| Packaging Details: | packaged according to the requirements of customers |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C, Paypal |
| Supply Ability: | 20 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Oversea |
|---|---|---|---|
| Color: | As Your Request | Max.Foam Block: | 2000mm H X 2000 MmW X 3000mm L |
| Control System: | Industrial Computer With D&T Special Profiler Software | Horizontal Cutting Blade: | 3×0.5mm (Width × Thickness) |
| Vertical Cutting Balde: | 3×0.5mm (Width × Thickness) | Cutting Speed: | 0~10m/min (Adjustable) |
| Overall Weight: | 2000kg | Overall Dimension: | 5800×3180×2400 Mm |
| High Light: | contour cutting machine,foam contour cutting machine,Soft Foam Oscillating Blade Cutter |
||

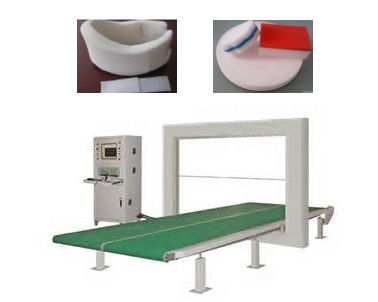

Clean Cut for Furniture Industry , Polyurethane PU Soft Foam Oscillating Blade Cutter Adjustable 50HZ
CNC foam cutting machine:
. CNC Foam Contour Cutting Machine(Knife Type)
. Computerized,Adopts Knife Cutting Type & Matched With Press Plate Device
. This Machine special used for 2D/3D Contour Shapes Cutting For Foam Blocks
flexible PU, sponge etc.
Description:
The D&T Oscillating Blade Contour Cutter is a kind of complex shape cutter which
suitable flexible foam.
The blade cut with high speed vibrating, resulting that it will work faster and the product
will be smoother.
Especially, no dust when you use Oscillating Blade Contour Cutter to cut Flexible PU.
Cutting Line: High speed, toothed blade.
Cutting speed: 10m/ min
Specification:
| Model |
DTC-S2012B |
|
Control System |
Industrial Computer |
|
Max. foam block Size |
2000mm H x 2000 mmW x 3000mm L |
|
Cutting Speed |
0~10m/min (Adjustable) |
| Horizontal cutting Blade | 3×0.5mm (Width × Thickness) |
| Vertical Cutting Balde | 3×0.5mm (Width × Thickness) |
| Blade Tension | Cylinder |
| Total Power | 10kw, 380V, 50HZ |
| Overall Weight | 2000kg |
| Overall Dimension | 5800×3180×2400 mm |
Terms:
Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T or Sight Confirmed Irrevocable L/C before delivery.
Delivery: 15-40 days after receipt of advance payment.
Installation and Startup: One technician will be assigned to coordinate installation,
commissioning and training, cost for flight and suitable accommodation plus USD80/day
per person will be charged additionally.
Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.
Shipping cost forparts to be replaced during warranty period have to be borne by the customer.
Shape and sheet finish product cutting:
