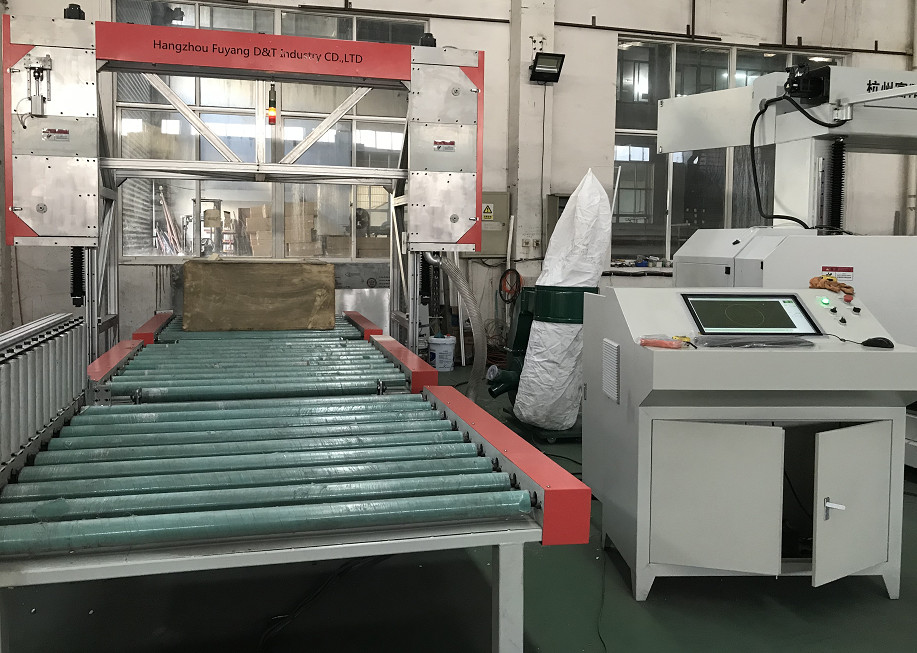

Name: 3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table
Brand: Fuyang D&T Industry Co., Ltd.
SKU: DTC-F1210K
Price: 50,000.00 USD
Availability: InStock

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table

1 set

MOQ

USD 45000-55000 /PC

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Power(W): 11kw

Machine Type: CNC Foam Cutting Machine

Dimension(L*W*H): L6200 X W3800 X H2800mm

Cutting Speed: 10m/min

Voltage: 380V 50HZ, 380V/50HZ

Weight: 2200kg

Colour: Customize

Highlight:

Rigid Foam CNC Wire Cut Machine

Thermocol 3d Cutting Machine

11kw CNC Wire Cut Machine

Basic Infomation

Place of Origin: China

Brand Name: D&T

Certification: CE

Model Number: DTC-F1210K

Payment & Shipping Terms

Packaging Details: export standard packing /20GP container

Delivery Time: 5 Set/Sets per Month

Payment Terms: L/C, T/T, Western Union，paypal

Gallery

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table

Product Description

3D CNC Foam Cutting Machine For Rigid And Semi-Rigid Foam With Rolling Table

Technical Specifications

Model		DTC-F2012K
Max. Block Size	250020001200mm
Control Device	Industrial Computer
Computer Operation System	Windows7
Software	D&T Profiler
Acceptable File Formats	DXF/DWG
Number of Cutting Wire	Horizontal cutting
Cutting Wire Length	~8500mm (Should be confirmed by maker by machine)
Cutting Wire Diameter	0.8~2.0mm
Flying Wheel Diameter	400mm
Mainly Motor	ABB, 3kW*2pcs
Running Speed of the wheel	2860rpm
Inverter	Panasonic, for 3kW motor
Cutting Speed	0~10m/min
Precision	±0.5mm
Total Power	11kW, 400/240V, 50Hz
Gross Weight	2800kg
Overall Dimension	L6200 x W3800 x H2800mm

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table 0

1.Suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.

Advantages of high speed fast wire contour cutter

1. About the new one , we fix the work table, so it avoid the product move a little when machine start to work , we cut the product through moving portal frame , so it improve the cutting precision
2. the cutting speed improve 10m/min, the old one is 0-3m/min, so efficiency of the new one is 3 times as the old one, means our new one can replace 3 sets old fast wire contour cutter .
3. the cutting tolerance is controlled ±0.3-0.5/-0. 3-0.5mm, the old one : ±0.5-1/0.5-1mm, the precison is big improved.
4. The new fast wire contour cutter use serve motor , replace the old one usually we adopt step motor ,so precision improved again.

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table 2

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table 3

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table 4

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table 5

Company Information

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table 6

Team and customer

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table 7

certificate

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table 8

Exhibition

3D Semi Rigid Foam CNC Wire Cut Machine With Rolling Table 9
