Rigid Pu Eva Rockwool CNC Foam Cutting Machine 2d 3d Shapes 6m/Min
Features Gallery Product Description Request A Quote
Features
Specifications
Cutting Wire Diameter: 0.8~2.0mm
Max. Block Size: 2500mm*1225mm*1000mm
Material Can Be Cut: Rock Wool Miner Wool Flexible
Number Of Cutting Wire: Dual Wire (Horizonal +Vertical)
Flying Wheel Diameter: 300mm
Mainly Motor: ABB, 3kW*2pcs
Running Speed Of The Wheel: 2860rpm
Colour: Customized
Highlight:

6m/Min CNC Foam Cutting Machine

,

Rockwool CNC Foam Cutting Machine

,

2D Shapes Cnc Foam Cutter

Basic Infomation
Place of Origin: China
Brand Name: D&T
Certification: CE
Model Number: DTC-FV2012
Payment & Shipping Terms
Packaging Details: WOODEN BOX
Delivery Time: 30 WORK DAYS
Payment Terms: L/C, T/T, Western Union.paypal
Supply Ability: 20 SETS PER MONTH
Product Description

flexible pu PVC Fast Wire cutter Rigid PU Foam Cutting Machine CNC Pipe Cutter
Dual Blade 6m/Min CNC Foam Cutting Machine For Rigid PU, EVA , ROCKWOOL, PHENOL FOAM for 2D or 3D Shapes

Technical Specifications

ModelDTC-FV2012
Max. Block SizeL2000*W 2000*1200mm
Control DeviceIndustrial Computer
Computer Operation SystemWindows7
SoftwareD&T Profiler
Acceptable File FormatsDXF/DWG
Number of Cutting WireDual Wire (Horizonal +Vertical)
Cutting Wire Length~8500mm (Should be confirmed by maker by machine)
Cutting Wire Diameter0.8~2.0mm
Flying Wheel Diameter300mm

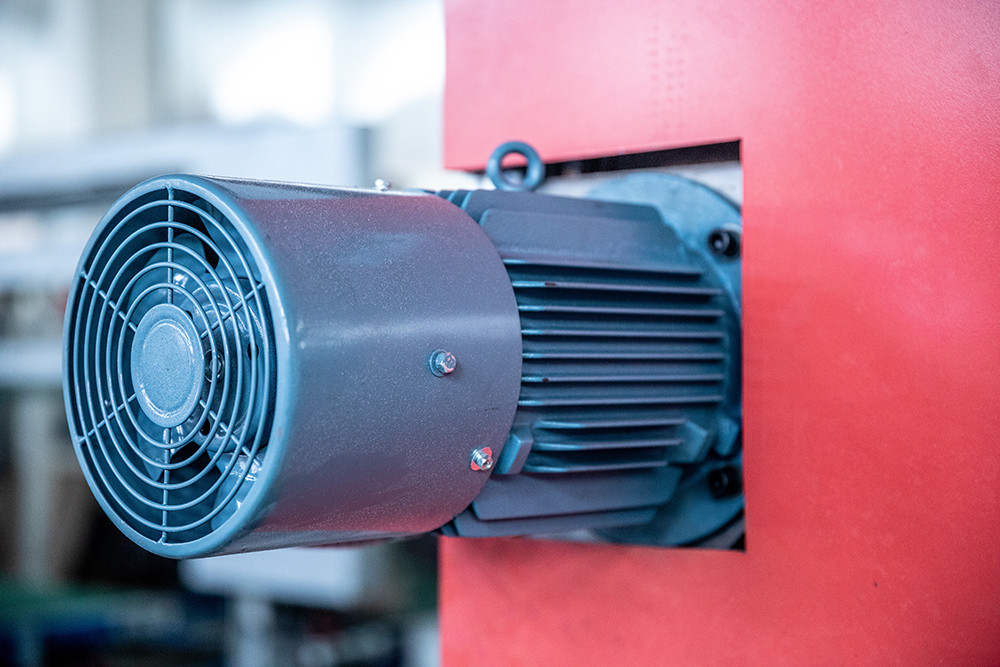

Mainly MotorABB, 3kW*2pcs
Running Speed of the wheel2860rpm
InverterPanasonic, for 3kW motor
Cutting Speed0~6m/min
Precision±0.5mm
Total Power11kW, 400/240V, 50Hz
Gross Weight2800kg
Overall DimensionL4000* W 5500*H 2500 mm

Rigid Pu Eva Rockwool CNC Foam Cutting Machine 2d 3d Shapes 6m/Min 0
Rigid Pu Eva Rockwool CNC Foam Cutting Machine 2d 3d Shapes 6m/Min 1

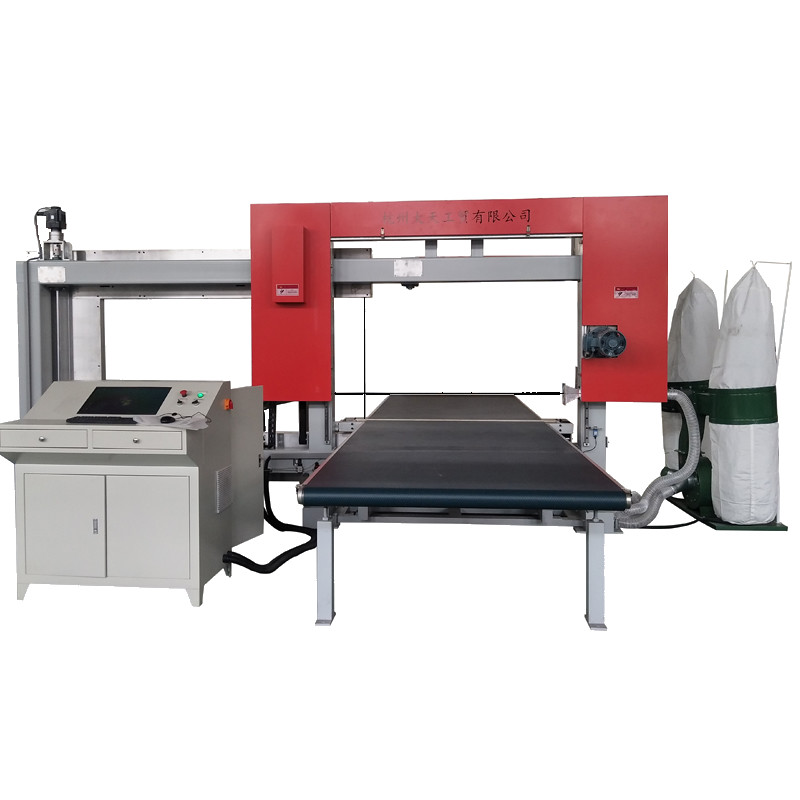

1.Suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
2.Fast Wire Contour Cutter
3.Cutting line: Fast cutting wire

4.The D&T Fast wire Contour Cutter is a versatile machine, which uses an abrasive wire moving at high-speed to enable it to cut complex 2D
shapes from a wide range of rigid and flexible foams. These include flexible and rigid PU, EPS, PE, PVC, EVA, 5.Rock wool and phenol foams.
All the machines are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain the best yield from the foam block.
6.Fast Wire Contour Cutter has perfect safe system to provide the accident. It include: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident; brake system when cutting line broken.
