Hangzhou Fuyang D&T Industry Co., Ltd.
Fuyang D&T Industry Co., Ltd. specializes in manufacturing sponge cutter, EPS cutter, PU foam cutter and cutting machine.Our company takes advantage of a long experience achieved in foam industry, in a continuous technological research and in an accurate study of materials and new technology, so we can produce suitable cutting machine for you.
Place of Origin: | China |
---|---|
Brand Name: | D&T |
Certification: | CE |
Model Number: | DTC-FV2012 |
Minimum Order Quantity: | 1 set |
Price: | USD 18000-37000 /PC |
Packaging Details: | WOODEN BOX |
Delivery Time: | 30 WORK DAYS |
Payment Terms: | L/C, T/T, Western Union.paypal |
Supply Ability: | 20 SETS PER MONTH |
Cutting Wire Diameter: | 0.8~2.0mm | Max. Block Size: | 2500mm*1225mm*1000mm |
---|---|---|---|
Material Can Be Cut: | Rock Wool Miner Wool Flexible | Number Of Cutting Wire: | Dual Wire (Horizonal +Vertical) |
Flying Wheel Diameter: | 300mm | Mainly Motor: | ABB, 3kW*2pcs |
Running Speed Of The Wheel: | 2860rpm | Colour: | Customized |

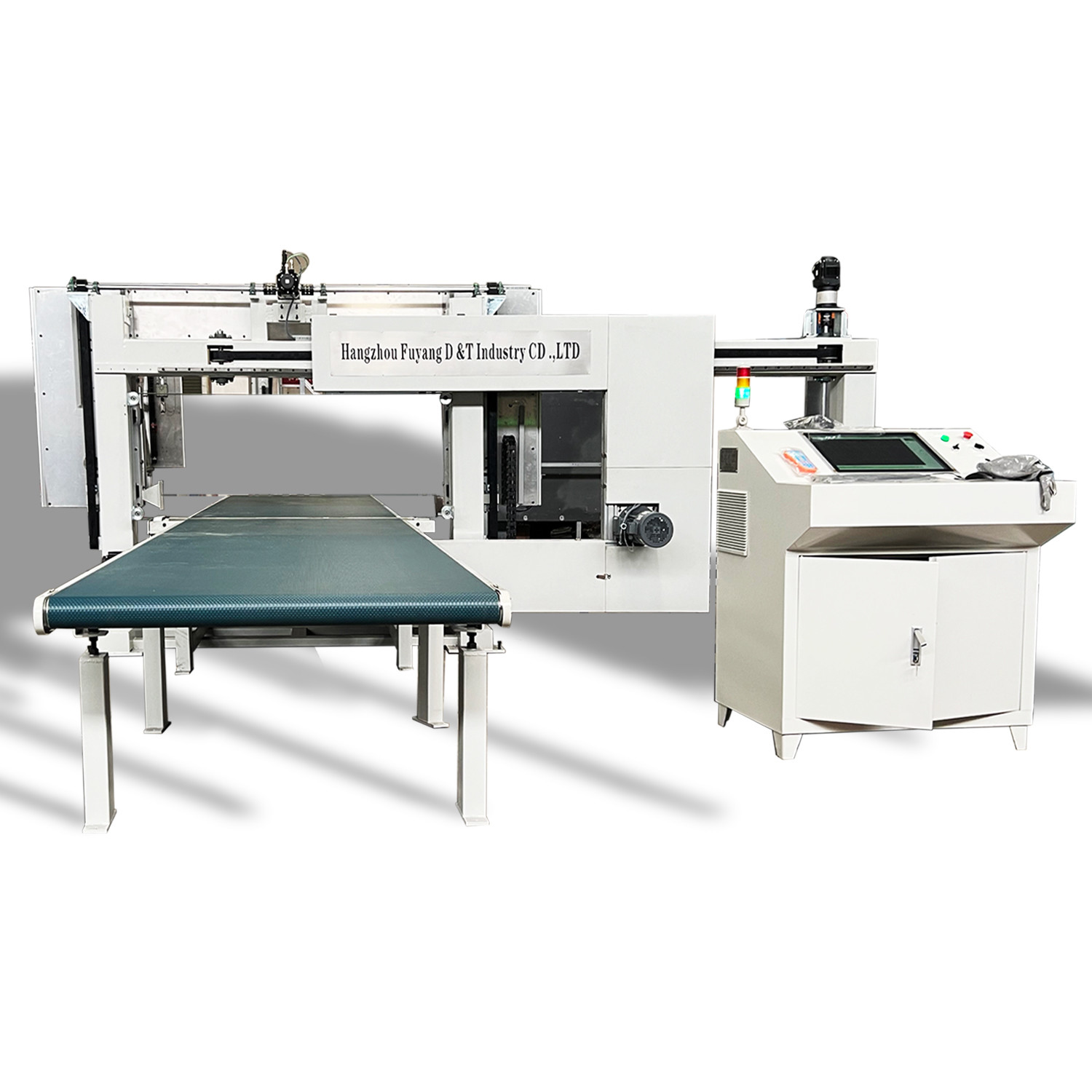

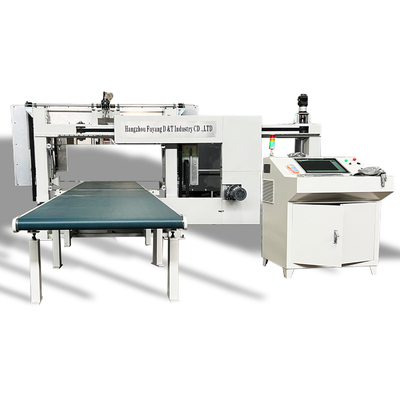

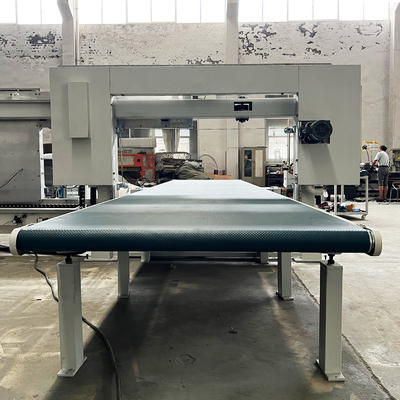

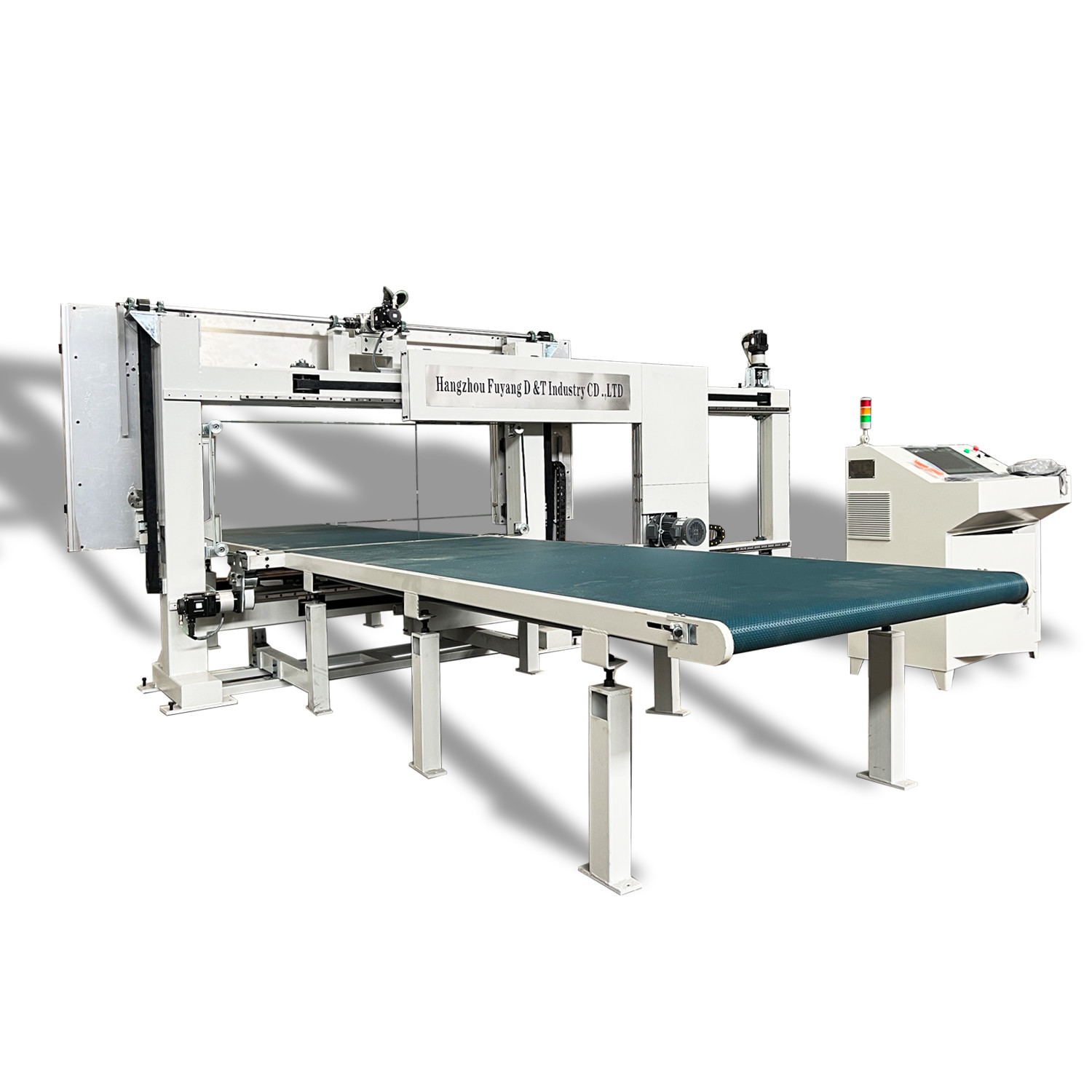

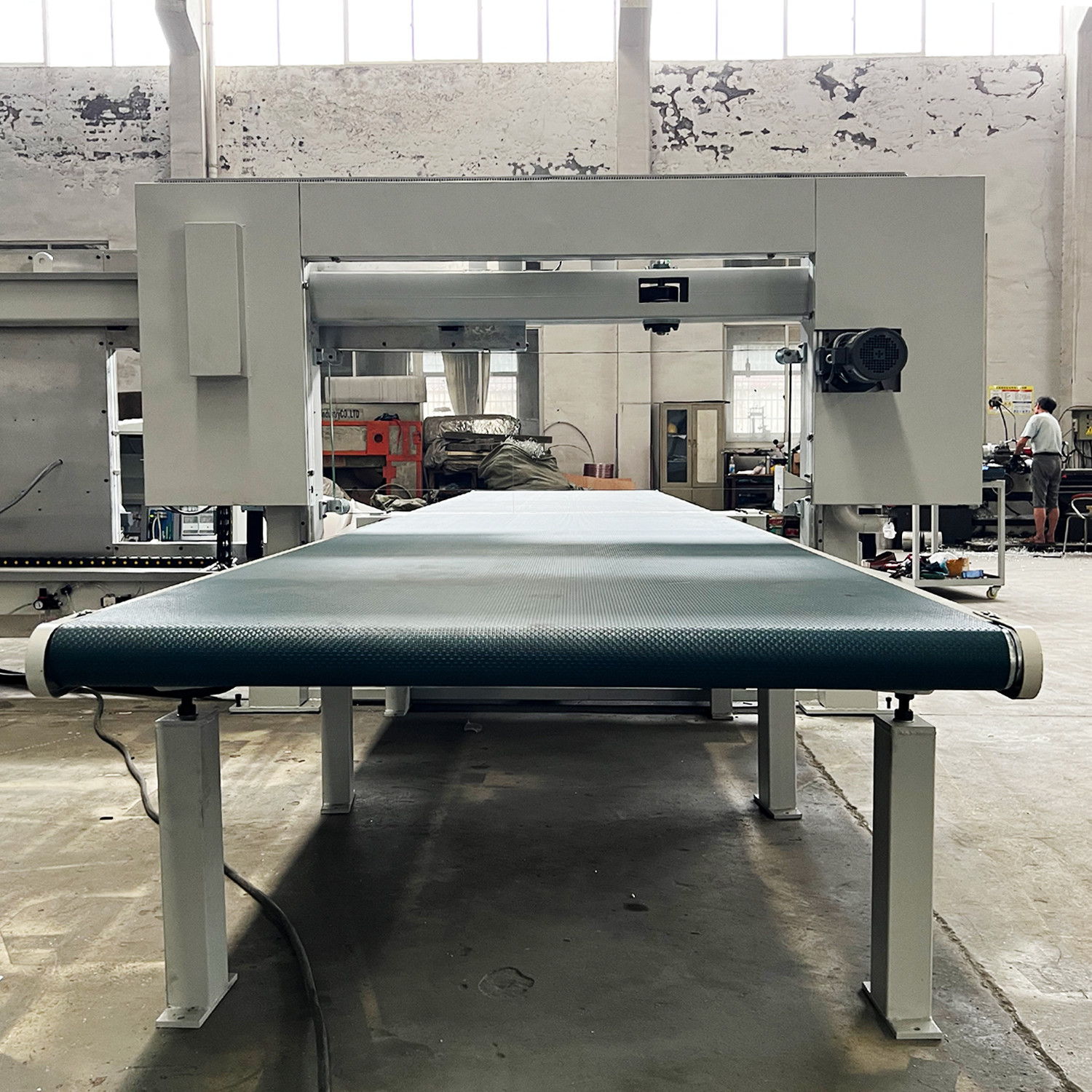

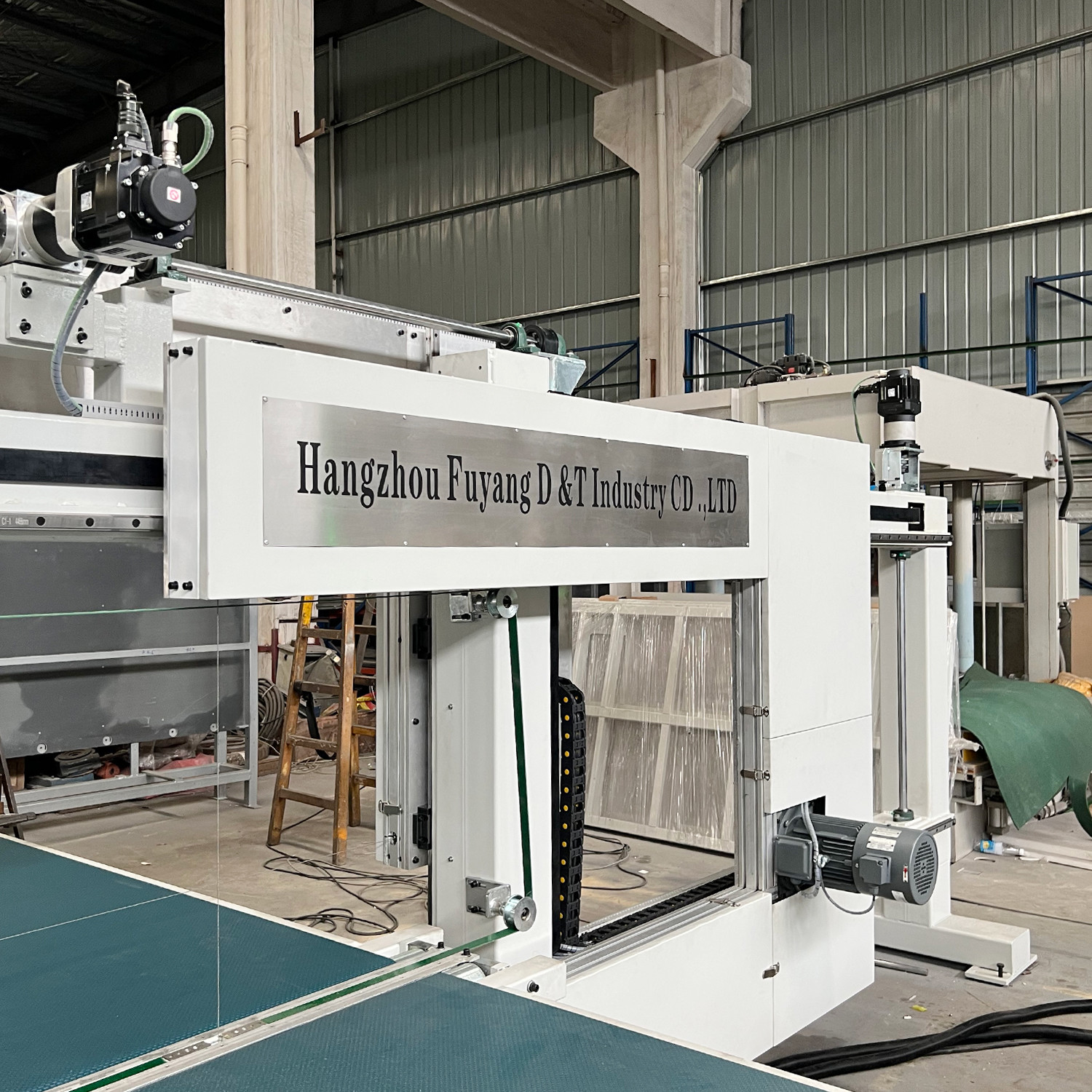

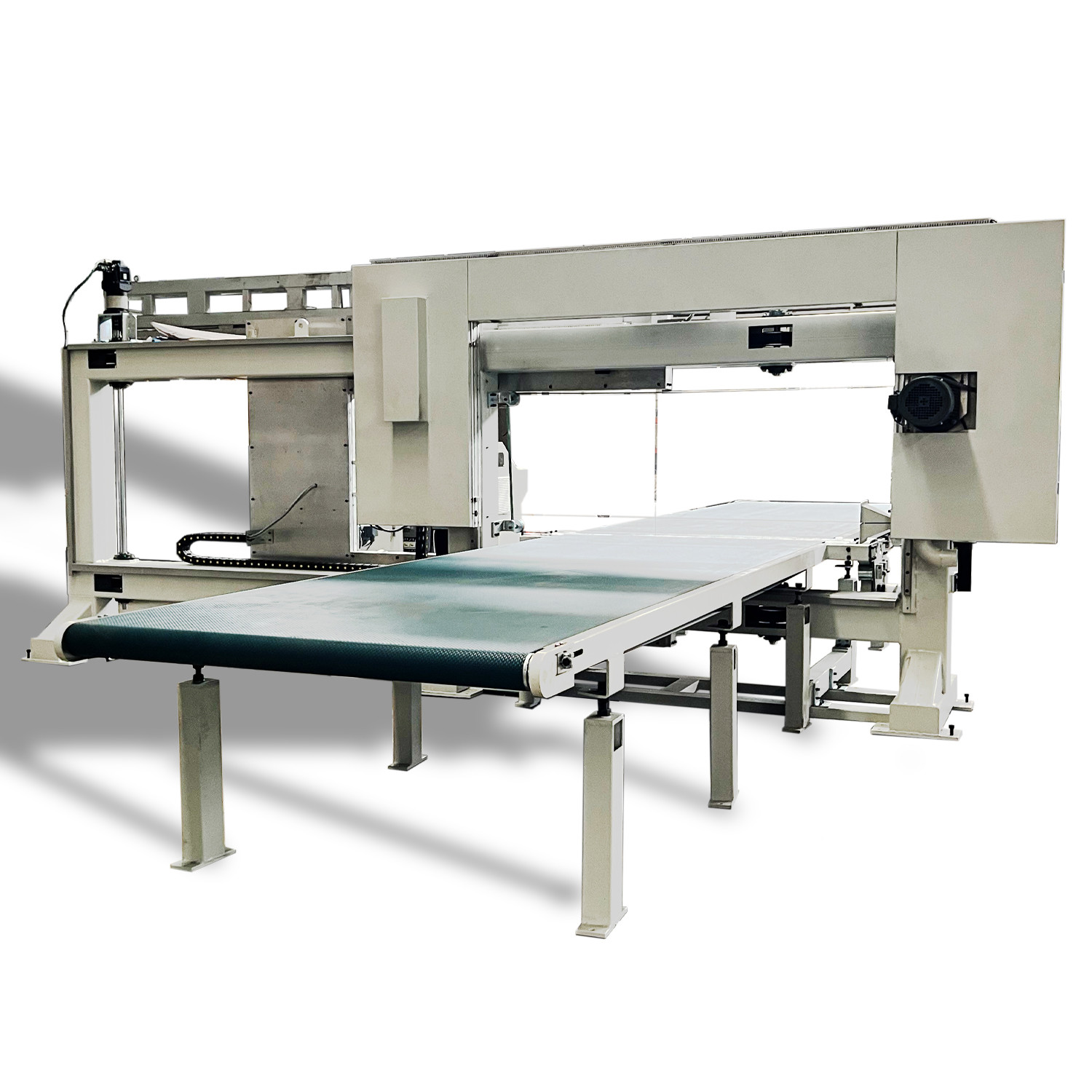

Product Name: | DTC-FV2012 Dual Blade CNC Foam Cutting Machine For Rigid PU EVA Rock Wool PHENOL FOAM | ||
High Light: | Dual Blade CNC Foam Cutting Machine,Rock Wool CNC Foam Cutting Machine,Rock Wool CNC Wire Cut Machine |
Technical Specifications
Model | DTC-FV2012 | |
Max. Block Size | L2000*W 2000*1200mm | |
Control Device | Industrial Computer | |
Computer Operation System | Windows7 | |
Software | D&T Profiler | |
Acceptable File Formats | DXF/DWG | |
Number of Cutting Wire | Dual Wire (Horizonal +Vertical) | |
Cutting Wire Length | ~8500mm (Should be confirmed by maker by machine) | |
Cutting Wire Diameter | 0.8~2.0mm | |
Flying Wheel Diameter | 300mm | |

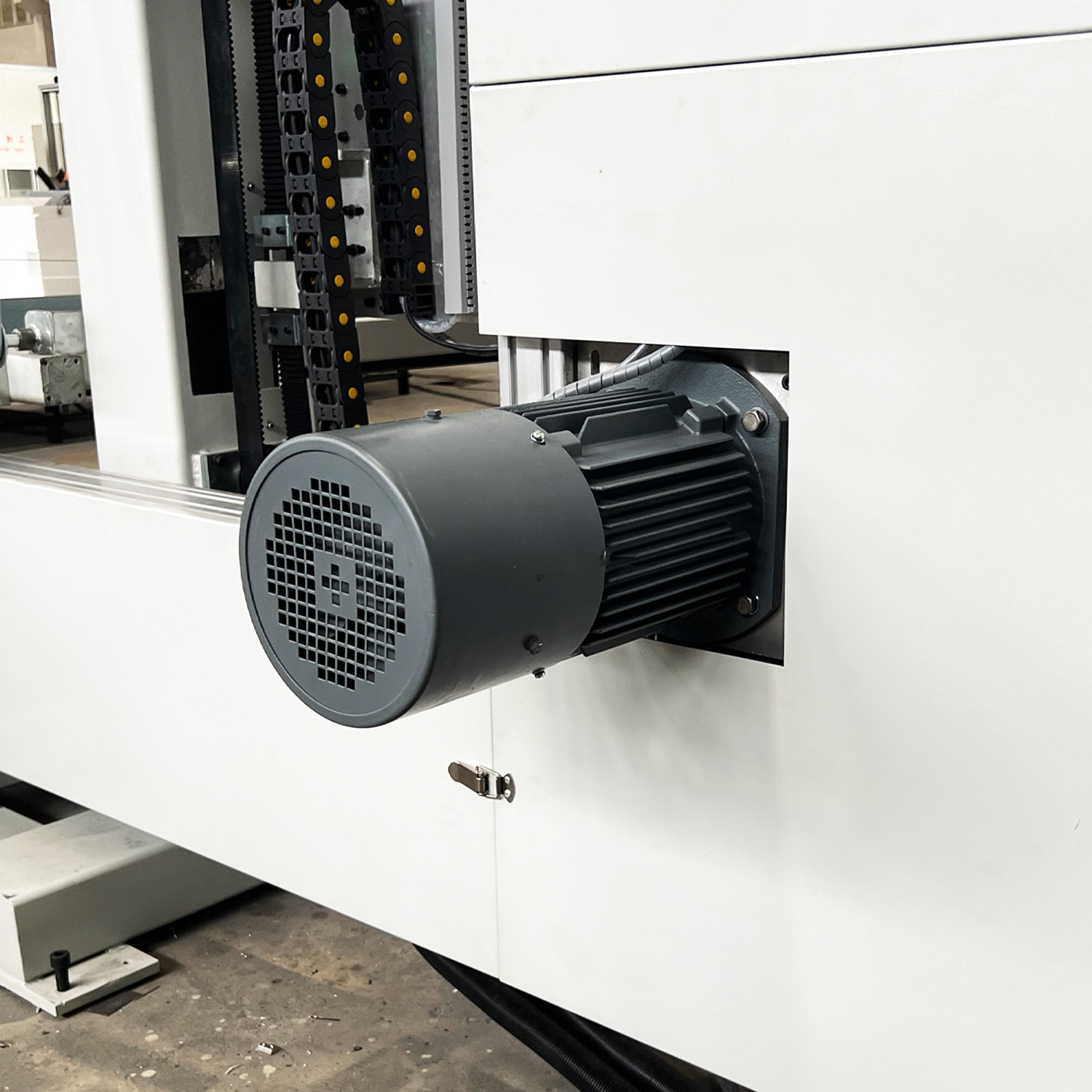

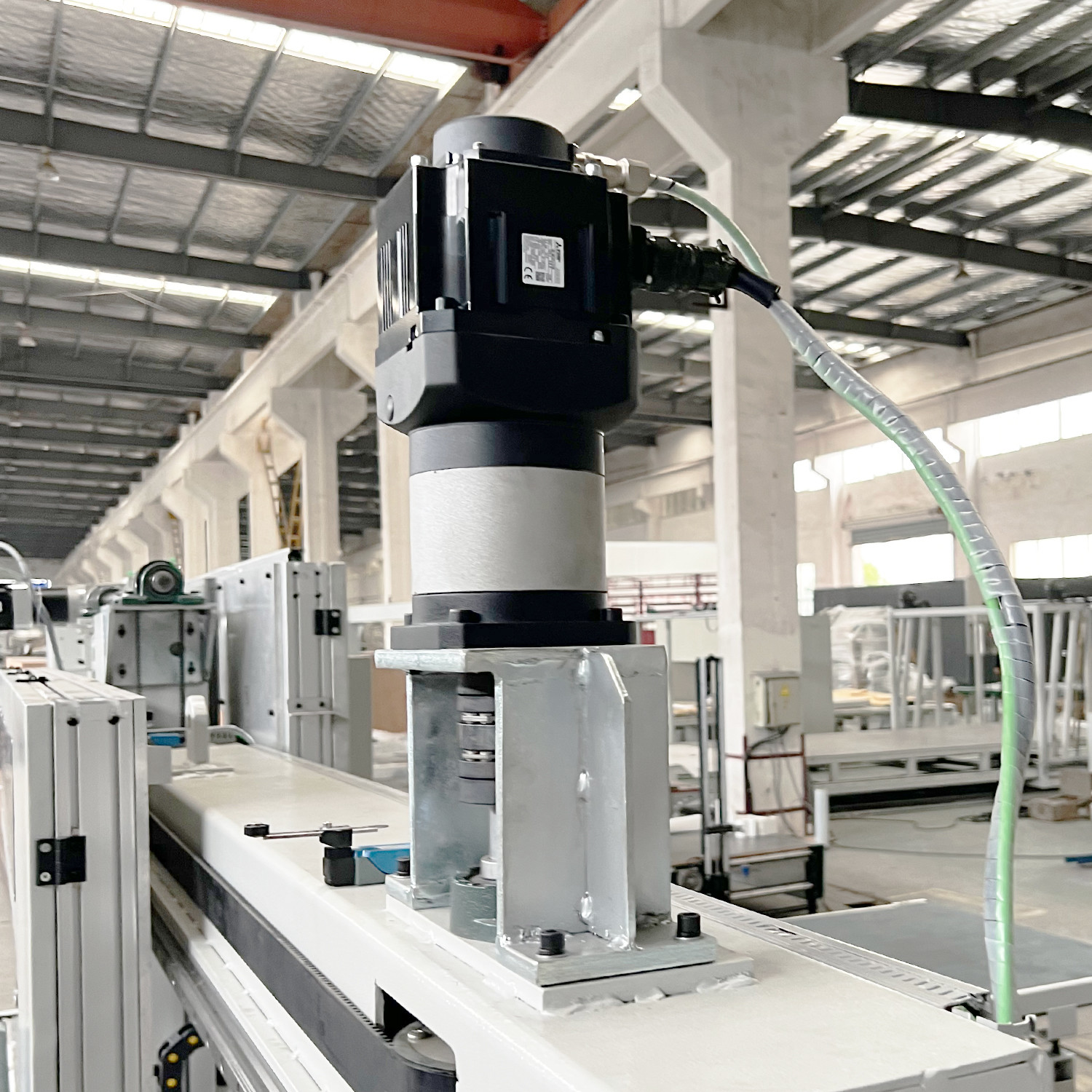

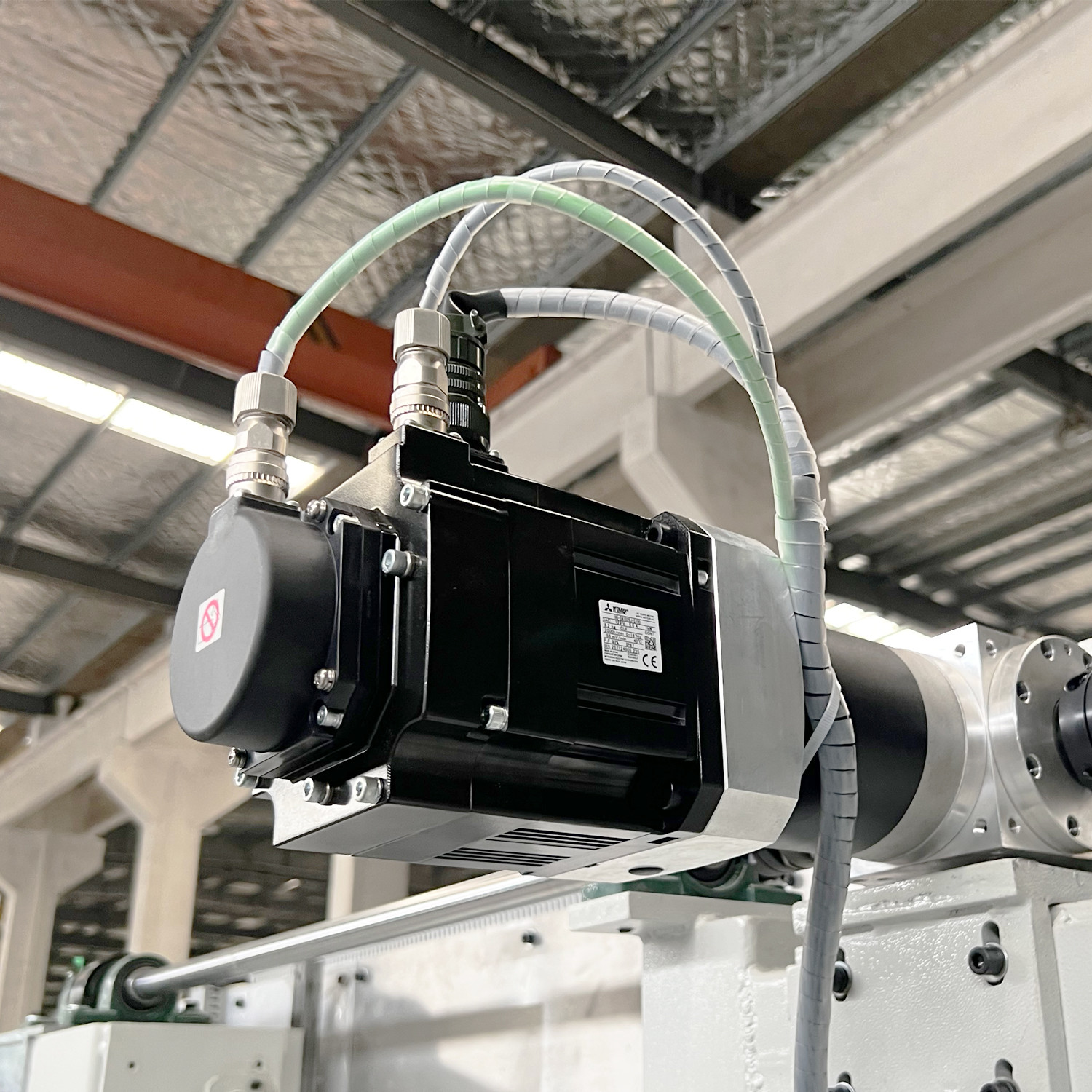

Mainly Motor | ABB, 3kW*2pcs | |
Running Speed of the wheel | 2860rpm | |
Inverter | Panasonic, for 3kW motor | |
Cutting Speed | 0~6m/min | |
Precision | ±0.5mm | |
Total Power | 11kW, 400/240V, 50Hz | |
Gross Weight | 2800kg | |
Overall Dimension | L4000* W 5500*H 2500 mm |
1. Suitable for: soft and hard PU, EPS, PE, PVC, EVA, rock wool and phenol foam.
2. Fast wire profile cutting machine
3. Cutting line: fast cutting line

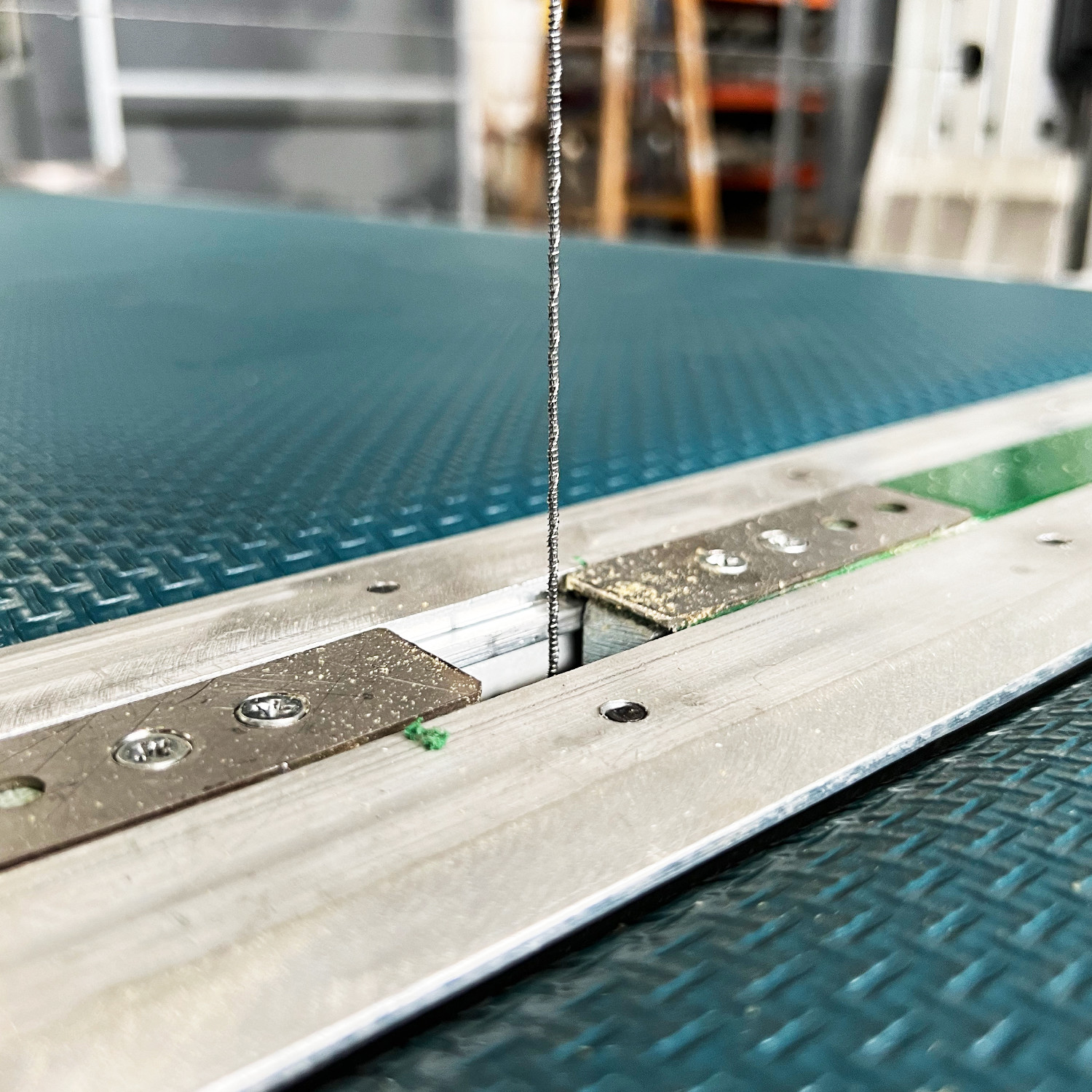

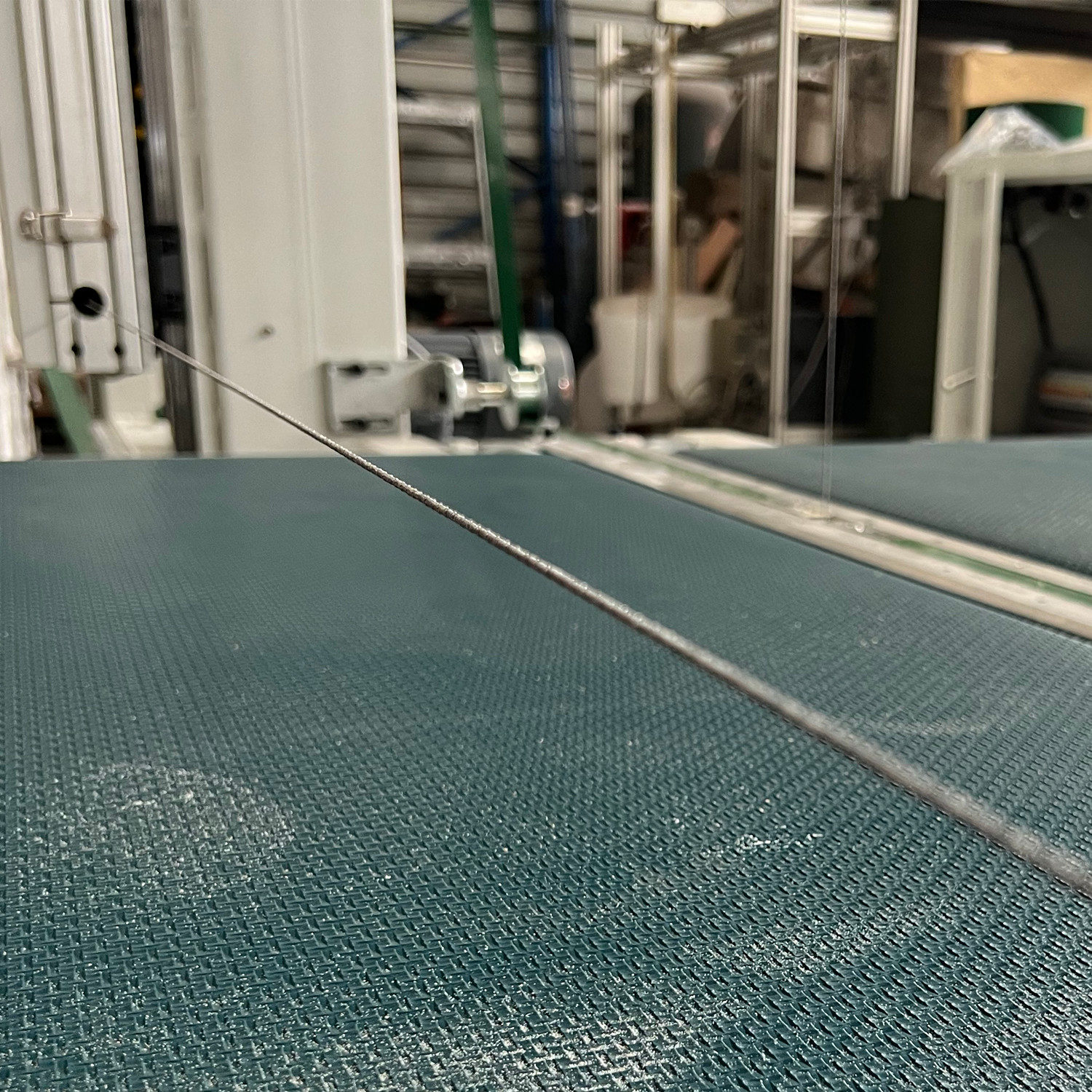

4.D&T Quick Wire Contour Cutting Machine is a versatile machine that uses high-speed moving abrasive wire to cut complex 2D
Various rigid and flexible foam shapes. These include flexible and rigid polyurethane, EPS, PE, PVC, EVA, 5. Rock wool and phenol foam.
All machines are powered by superior D&T Profiler software that speeds up the design process and enables operators to get the best yield from foam blocks.

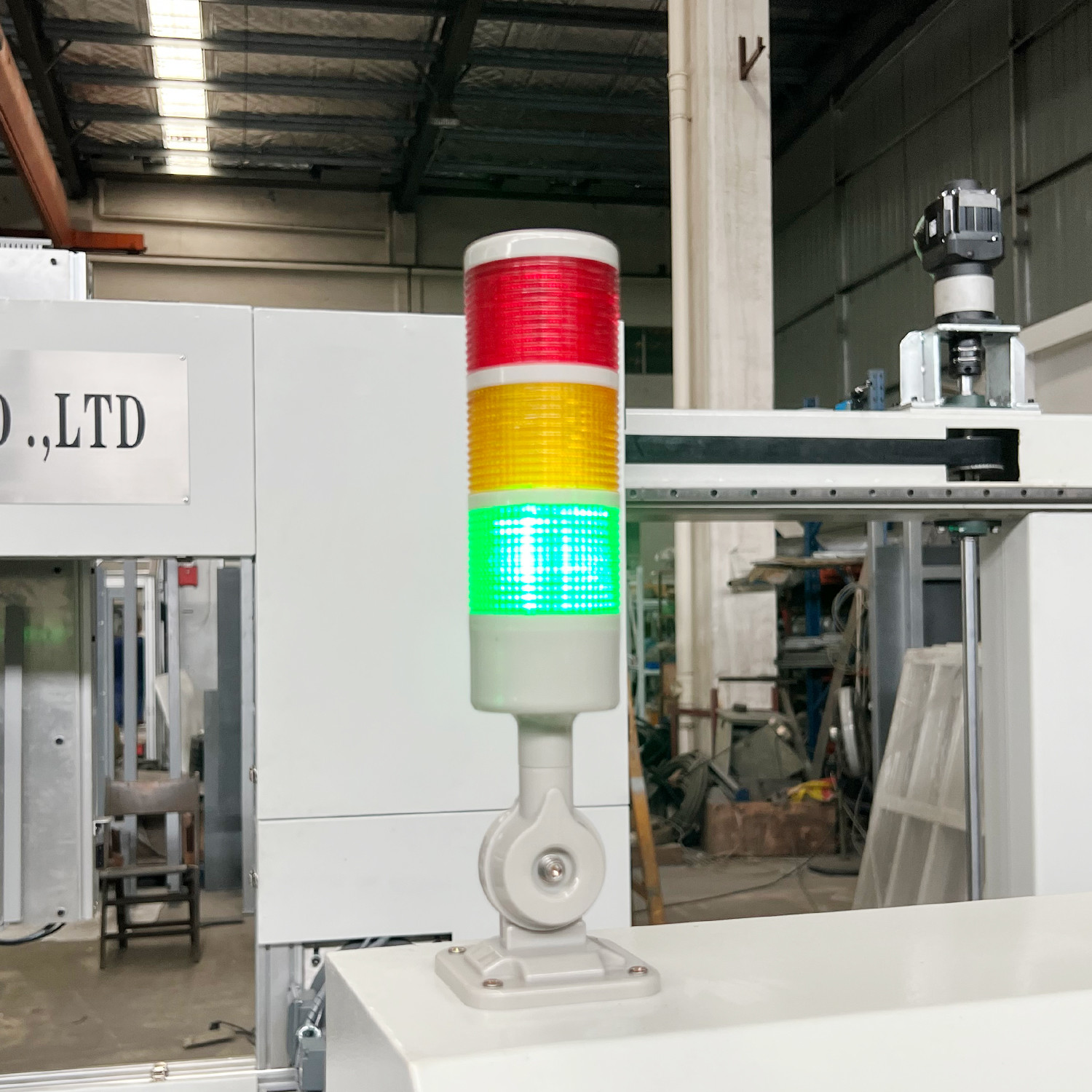

6. The fast wire contour cutting machine has a perfect safety system to provide protection for accidents. It includes: when the safety door is opened, all motors will stop;
Emergency buttons for accidents on machines and control boxes; Braking system in case of a break in the cutting line.
