Automatic Uncontinuous Block EPS Cutting Machine 2m/Min

1set
MOQ
USD5000-20000/set
Price
Automatic Uncontinuous Block EPS Cutting Machine 2m/Min
Features Gallery Product Description Request A Quote
Features
Specifications
Item: EPS Sheet Cutter
Max. Cutting Size: 6000*1300*1300mm
Power: 11.2kw
Overall Dimension: 8800*1950*2450mm
Weight: 1600kg
Wire Dia.: 0.8-1.2mm
Cutting Speed: 0-2m/min
Product Name: DTC-E600A Automatic Uncontinuous Block EPS Cutting Machine
Highlight:

Uncontinuous Block EPS Cutting Machine

,

EPS Cutting Machine 2m/min

,

2m/min EPS Sheet Cutter

Basic Infomation
Place of Origin: CN
Brand Name: D&T
Certification: ce
Model Number: DTC-E600A
Payment & Shipping Terms
Packaging Details: packed with pvc film
Delivery Time: 20days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 20 sets per month
Product Description

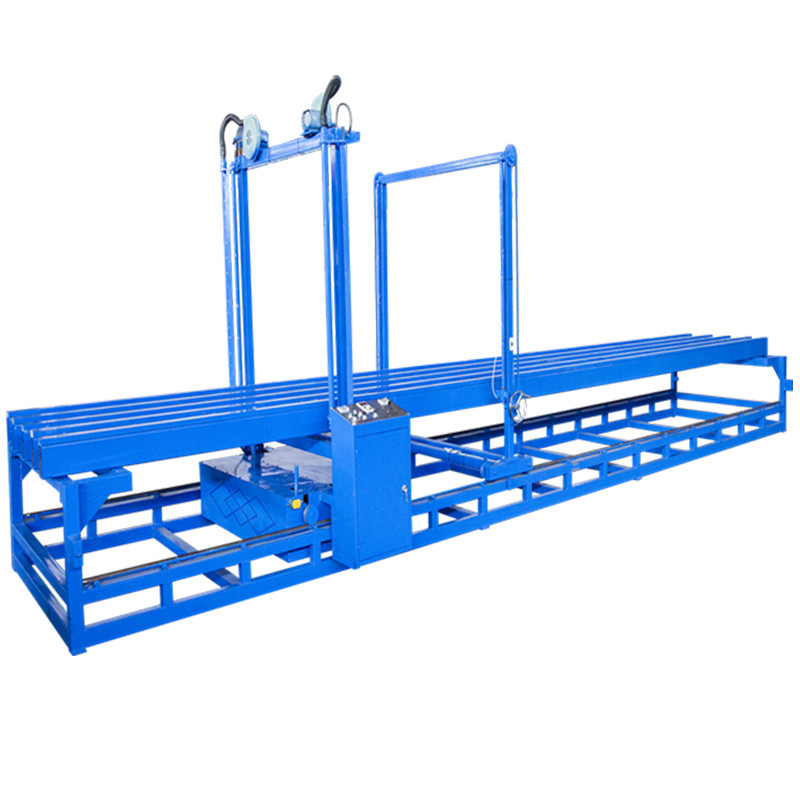

DTC-E600A Automatic Uncontinuous Block EPS Cutting Machine



1. Main Features:


1. The main frame of the machine is welded from square profile steel, with strong structure and high strength.
2.The machine has horizontal, cross and edge cutting devices.
3.The machine adopts transducer to get the suitable cutting speed for different type and density EPS block.
4.Voltage adjustment. With the transducer, the machine can cut sheet excellent.





2. Company Information


Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC foam Cutting machine,



polyurethane cutting machine, quilting machine and foam relation assistant



equipments. Through the research of our engineers, our cutting machine had connected well



with the popularized CAD and achieved automation and high efficiency, high accuracy and



makes it easy to operate.We always put the customer on the first place and make utmost efforts



to satisfy you.We wholeheartedly look forward to developing economic, technical and trade



cooperation with you. Products: Fast wire cutting machine, pu cutting machine, hot wire cutting



machine, eps cutting machine, quilting machine and so on.






Note: The price bases on present exchange rate. It will be changed with the exchange rate.





TECHNICIAL DATA
Type DTC-EP200 DTC-EP300 DTC-EP400 DTC-EP600 DTC-EP800
Max. Product Size

2000×1300×

1300(mm)

3000×1300×

1300(mm)

4000×1300×

1300(mm)

6000×1300×

1300(mm)

8000×1300×

1300(mm)

Power 11.2kW 11.2kW 11.2kW 11.2kW 11.2kW
Overall Dimension

4800×1950×

1850(mm)

5800×1950×

1850(mm)

6800×1950×

2450(mm)

8800×1950×

2450(mm)

10800×1950×

2450(mm)

Overall Weight 800㎏ 1000㎏ 1200㎏ 1600㎏ 2000㎏



This offer is valid:   30 days
Terms of Payment: 30% advance payment by T/T upon signing the contract
                               70% covered by T/T or Sight Confirmed Irrevocable L/C



Delivery:                 40 days after receipt of advance payment.


Installation and Start-up:     One technician (with one Translator) will be assigned to coordinate installation, Commissioning and training, cost for flight and suitable accommodation plus USD60/day each will be charged additionally.


Warranty: 12 months limited warranty



The machine also can be produced by customer’s special requirement.




.
